Alternator 0 986 083 760
Click to zoom
BOSCH

Alternator 0 986 083 760

SKU: 0 986 083 760

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

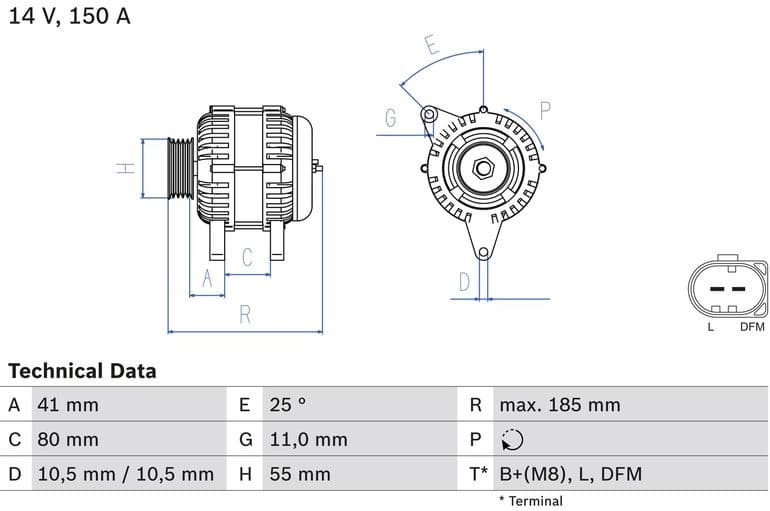

Product Details

Brand
BOSCH
SKU / MPN
0 986 083 760
Alternator charging current (a)
150
Alternator type
excl. vacuum pump
Belt pulley (mm)
55

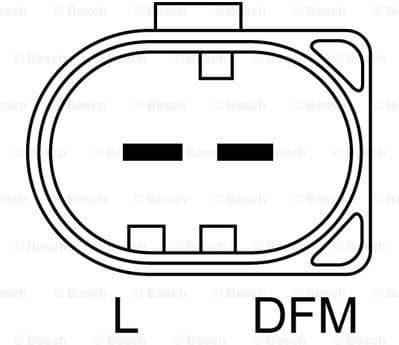

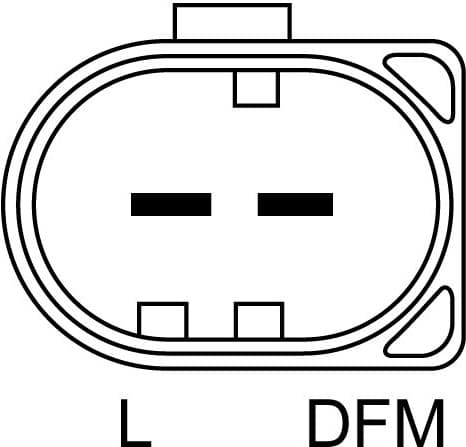

Clamp
B+(M8),L,DFM
Distance from belt pulley to alternator (mm)
41
Fastening type
Double Pivot Lever
Length (mm)
185
Number of grooves
7
Plug type id
PL61
Pulleys
with multi-belt pulley
Recommended additional repairs
V-Belt/V-ribbed Belt
Rotation direction
Clockwise rotation
Voltage (v)
14
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

504385134

Compatible Vehicles (56)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FIATDUCATO Bus 110 Multijet 2,3 D2011 - present
FIATDUCATO Bus 130 Multijet 2,3 D2007 - present
FIATDUCATO Bus 150 Multijet 2,3 D2011 - present
FIATDUCATO Bus 150 Multijet 2,3 D2015 - present
FIATDUCATO Bus 150 Multijet 2,3 D 4x42015 - present
FIATDUCATO Commercial 110 Multijet 2,3 D2011 - present
FIATDUCATO Commercial 130 Multijet 2,3 D2007 - present
FIATDUCATO Commercial 150 Multijet 2,3 D2011 - present
FIATDUCATO Commercial 150 Multijet 2,3 D2015 - present
FIATDUCATO Commercial 150 Multijet 2,3 D 4x42015 - present
FIATDUCATO Commercial 180 Multijet 2,3 D2015 - present
FIATDUCATO Platform / Chassis 110 Multijet 2,3 D2011 - present
FIATDUCATO Platform / Chassis 130 Multijet 2,3 D2007 - present
FIATDUCATO Platform / Chassis 150 Multijet 2,3 D2011 - present
FIATDUCATO Platform / Chassis 150 Multijet 2,3 D2015 - present
FIATDUCATO Platform / Chassis 180 Multijet 2,3 D2015 - present
IVECODAILY IV Dumptruck 35C10 K2006 - present
IVECODAILY IV Dumptruck 35C11 K, 35C11 DK, 35S11 K, 35S11 DK2007 - present
IVECODAILY IV Dumptruck 35C122006 - present
IVECODAILY IV Dumptruck 35C13 K, 35C13 DK, 35S13 K, 35S13 DK2007 - present
IVECODAILY IV Dumptruck 35S14 K, 35S14 DK2007 - present
IVECODAILY IV Bus 35S14, 35S14 /P2006 - 2011
IVECODAILY IV Commercial 29L10 V2006 - present
IVECODAILY IV Commercial 29L12 V, 29L12 V/P2006 - present
IVECODAILY IV Commercial 29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P2006 - present
IVECODAILY IV Commercial 35C10, 35S102006 - present
IVECODAILY IV Commercial 35C11 V, 35S11 V2007 - present
IVECODAILY IV Commercial 35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P2006 - present
IVECODAILY IV Commercial 35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P2007 - present
IVECODAILY IV Commercial 35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,...2006 - present
IVECODAILY IV Commercial 40C10 V2006 - present
IVECODAILY IV Commercial 40C11 V2007 - present
IVECODAILY IV Commercial 40C12 V, 40C14 V/P2006 - present
IVECODAILY IV Commercial 40C13 V, 40C13 V/P2007 - present
IVECODAILY IV Platform / Chassis 29L102006 - 2011
IVECODAILY IV Platform / Chassis 29L122006 - 2011
IVECODAILY IV Platform / Chassis 29L142006 - 2011
IVECODAILY IV Platform / Chassis 35C10, 35S102006 - 2011
IVECODAILY IV Platform / Chassis 35C11, 35S11, 35S11 D, 35S11 /P2007 - 2011
IVECODAILY IV Platform / Chassis 35C12, 35S122006 - 2011
IVECODAILY IV Platform / Chassis 35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P2007 - 2011
IVECODAILY IV Platform / Chassis 35C14, 35S14, 35S14 /P2006 - 2011
IVECODAILY IV Platform / Chassis 40C102006 - 2011
IVECODAILY IV Platform / Chassis 40C11, 40C11 D2007 - 2011
IVECODAILY IV Platform / Chassis 40C122006 - 2011
IVECODAILY IV Platform / Chassis 40C13, 40C13 /P2007 - 2011
IVECODAILY V Dumptruck 35C11K, 35S11DKP2011 - present
IVECODAILY V Dumptruck 35C13K, 35C13DKP2011 - present
IVECODAILY V Dumptruck 35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K2011 - present
IVECODAILY V Commercial 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V2011 - present
