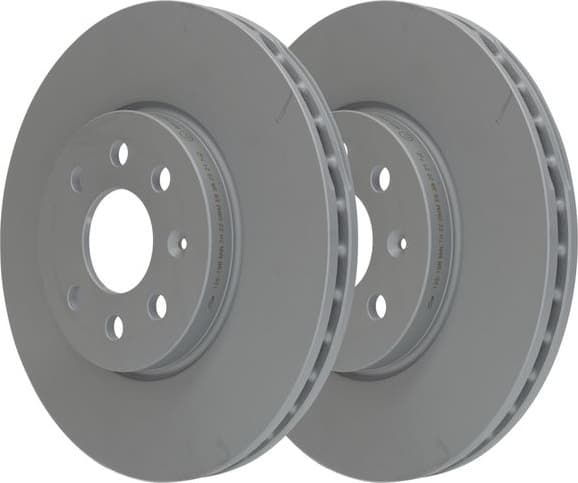

Brake Disc 24.0125-0198.1
Click to zoom
ATE

Brake Disc 24.0125-0198.1

SKU: 24.0125-0198.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
ATE
SKU / MPN
24.0125-0198.1

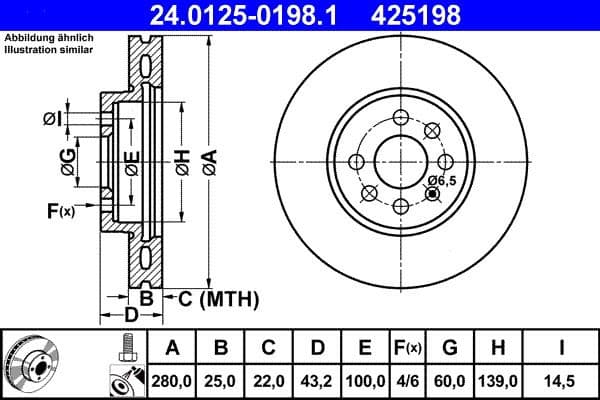

Bolt hole circle (mm)
100
Bore diameter (mm)
14.5
Bore (mm)
14.5
Brake disc thickness (mm)
25
Brake disc type
Vented
Centering diameter (mm)
60
Height (mm)
43.2
Inner diameter (mm)
139
Machining
Alloyed/High-carbon
Minimum thickness (mm)
22
No of holes 2
6
Number of holes
4
Outer diameter (mm)
280
Additional info
with bolts/screws
Surface
Coated
Approval
E1 90R-02C0115/0393
Processing
Alloyed / high carbon
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

27601542931408171420351868692036512308254251985690075690676684108008250991592009915976921293009212930393181113931977124302606004302606501815203651400663334620754293PRO562315B562315J8DD3551107318DD35511074198200129301BDC5455BG3933BG3989BS5455BS8602DDF1374DF4318DF4426HPD035MDC1703WD01003

Compatible Vehicles (77)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
OPELASTRA H 1.22005 - present
OPELASTRA H 1.3 CDTI2005 - present
OPELASTRA H 1.42004 - present
OPELASTRA H 1.42004 - 2004
OPELASTRA H 1.4 LPG2009 - present
OPELASTRA H 1.62004 - present
OPELASTRA H 1.62006 - present
OPELASTRA H 1.6 Turbo2007 - present
OPELASTRA H 1.7 CDTI2004 - present
OPELASTRA H 1.7 CDTI2004 - present
OPELASTRA H 1.7 CDTI2007 - present
OPELASTRA H 1.7 CDTI2007 - present
OPELASTRA H 1.82004 - present
OPELASTRA H 1.82006 - present
OPELASTRA H 1.9 CDTI2004 - present
OPELASTRA H 1.9 CDTI2004 - present
OPELASTRA H 1.9 CDTI2005 - present
OPELASTRA H 1.9 CDTI 16V2004 - present
OPELASTRA H 2.0 Turbo2004 - present
OPELASTRA H 2.0 Turbo2004 - present
OPELASTRA H GTC 1.3 CDTI2005 - present
OPELASTRA H GTC 1.42005 - present
OPELASTRA H GTC 1.42005 - present
OPELASTRA H GTC 1.62005 - present
OPELASTRA H GTC 1.62006 - present
OPELASTRA H GTC 1.6 Turbo2007 - present
OPELASTRA H GTC 1.7 CDTI2005 - present
OPELASTRA H GTC 1.7 CDTI2007 - present
OPELASTRA H GTC 1.7 CDTI2007 - present
OPELASTRA H GTC 1.7 CDTi2005 - present
OPELASTRA H GTC 1.82005 - present
OPELASTRA H GTC 1.82006 - present
OPELASTRA H GTC 1.9 CDTI2005 - present
OPELASTRA H GTC 1.9 CDTI2006 - present
OPELASTRA H GTC 1.9 CDTi2005 - present
OPELASTRA H GTC 1.9 CDTi 16V2005 - present
OPELASTRA H GTC 2.0 Turbo2005 - present
OPELASTRA H GTC 2.0 Turbo2005 - present
OPELASTRA H TwinTop 1.62005 - present
OPELASTRA H TwinTop 1.62006 - present
OPELASTRA H TwinTop 1.6 Turbo2007 - present
OPELASTRA H TwinTop 1.82005 - present
OPELASTRA H TwinTop 1.82005 - present
OPELASTRA H TwinTop 1.9 CDTi2005 - present
OPELASTRA H TwinTop 2.0 Turbo2005 - present
OPELASTRA H TwinTop 2.0 Turbo2005 - present
OPELASTRA H Box Body / Estate 1.3 CDTI2005 - present
OPELASTRA H Box Body / Estate 1.6 EcoTec2004 - 2004
OPELASTRA H Box Body / Estate 1.7 CDTI2004 - present
OPELASTRA H Box Body / Estate 1.7 CDTI2007 - present
Show all 77 vehicles
