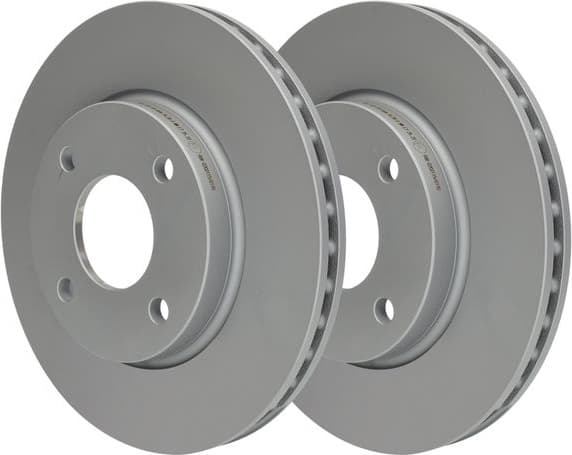

Brake Disc 24.0122-0172.1
Click to zoom
ATE

Brake Disc 24.0122-0172.1

SKU: 24.0122-0172.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
ATE
SKU / MPN
24.0122-0172.1

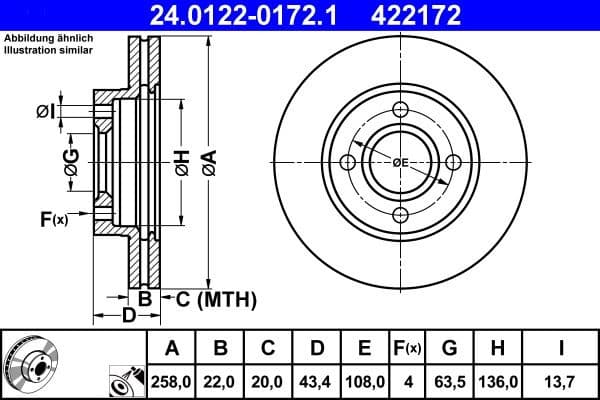

Bolt hole circle (mm)
108
Bore diameter (mm)
13.7
Bore (mm)
13.7
Brake disc thickness (mm)
22
Brake disc type
Vented
Centering diameter (mm)
63.5
Height (mm)
43.4
Inner diameter (mm)
136
Minimum thickness (mm)
20
Number of holes
4
Outer diameter (mm)
258
Surface
Coated
Approval
E1 90R-02C0115/0190
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

12578510401402101422421865602025492304764221726575108004761148202117522413205851323620137377115222301808479355534435735374077455097806100978061409780675140210N92096200920962032501343002501343500986478892400663302152451040PRO562078B562078J8DD3551064218DD3551064319820009620198200096201PRO98AB1125BE98AG1125EB98AX1125B1F

Compatible Vehicles (67)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDFIESTA Van / MPV 1.31996 - 2003
FORDFIESTA Van / MPV 1.8 D1996 - 2002
FORDFIESTA Van / MPV 1.8 DI2000 - 2003
FORDFIESTA IV 1.0 i1999 - 2002
FORDFIESTA IV 1.25 i 16V1995 - 2002
FORDFIESTA IV 1.3 i1995 - 2002
FORDFIESTA IV 1.3 i1995 - 2002
FORDFIESTA IV 1.4 i 16V1996 - 2002
FORDFIESTA IV 1.6 16V Sport2000 - 2002
FORDFIESTA IV 1.8 D1995 - 2000
FORDFIESTA IV 1.8 DI2000 - 2002
FORDFIESTA V 1.25 16V2002 - 2008
FORDFIESTA V 1.25 16V2003 - 2008
FORDFIESTA V 1.32001 - 2008
FORDFIESTA V 1.32001 - 2008
FORDFIESTA V 1.4 16V2001 - 2008
FORDFIESTA V 1.4 TDCi2001 - 2008
FORDFIESTA V 1.6 16V2001 - 2008
FORDFIESTA V 1.6 TDCi2004 - 2008
FORDFIESTA V Van 1.32003 - 2005
FORDFIESTA V Van 1.4 TDCi2003 - 2010
FORDFIESTA Hatchback D 1.81998 - 2002
FORDFOCUS I 1.4 16V1998 - 2004
FORDFOCUS I 1.6 16V1998 - 2004
FORDFOCUS I 1.6 16V Flexifuel2002 - 2004
FORDFOCUS I 1.8 16V1998 - 2004
FORDFOCUS I 1.8 DI / TDDi1999 - 2004
FORDFOCUS I 1.8 TDCi2001 - 2004
FORDFOCUS I 1.8 TDCi2002 - 2004
FORDFOCUS I 1.8 Turbo DI / TDDi1998 - 2004
FORDFOCUS I 2.0 16V1998 - 2004
FORDFOCUS I Turnier 1.4 16V1999 - 2004
FORDFOCUS I Turnier 1.6 16V1999 - 2004
FORDFOCUS I Turnier 1.8 16V1999 - 2004
FORDFOCUS I Turnier 1.8 DI / TDDi1999 - 2004
FORDFOCUS I Turnier 1.8 TDCi2001 - 2004
FORDFOCUS I Turnier 1.8 TDCi2002 - 2004
FORDFOCUS I Turnier 1.8 Turbo DI / TDDi1999 - 2004
FORDFOCUS I Turnier 2.0 16V1999 - 2004
FORDFOCUS I Sedan 1.4 16V1999 - 2004
FORDFOCUS I Sedan 1.6 16V1999 - 2004
FORDFOCUS I Sedan 1.8 16V1999 - 2004
FORDFOCUS I Sedan 1.8 TDCi2001 - 2004
FORDFOCUS I Sedan 1.8 TDCi2002 - 2004
FORDFOCUS I Sedan 1.8 Turbo DI / TDDi1999 - 2004
FORDFOCUS I Sedan 1.8 Turbo DI / TDDi2001 - 2005
FORDFOCUS I Sedan 2.0 16V1999 - 2004
FORDFUSION 1.252004 - 2012
FORDFUSION 1.42002 - 2012
FORDFUSION 1.4 LPG2010 - 2012
Show all 67 vehicles
