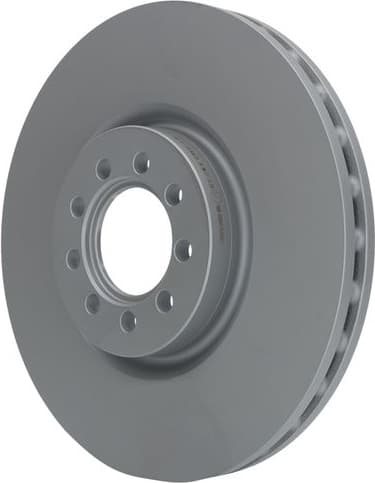

Brake Disc 24.0128-0239.1
Click to zoom
ATE

Brake Disc 24.0128-0239.1

SKU: 24.0128-0239.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
ATE
SKU / MPN
24.0128-0239.1

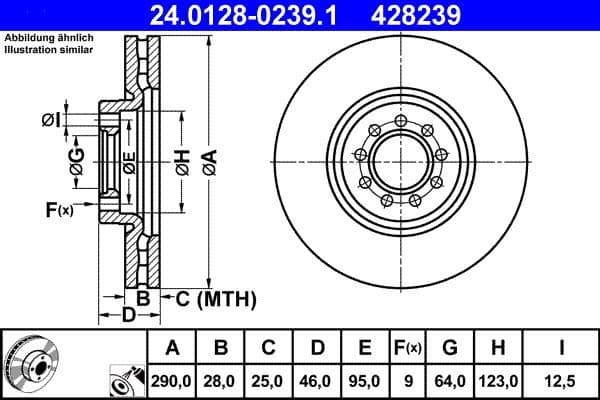

Bolt hole circle (mm)
95
Bore diameter (mm)
12.5
Brake disc thickness (mm)
28
Brake disc type
Vented
Centering diameter (mm)
64
Height (mm)
46
Inner diameter (mm)
123
Minimum thickness (mm)
25
Number of holes
9
Outer diameter (mm)
290
Surface
Coated
Approval
E1 90R-02C0115/0057
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

2507535335545571871552023572309144282398009141421456299612161061100997601023062660050412161218152023574006633341691569164J8DD3551174619215570098200155701BG4101BS8663DF29914FCR317AI1013VMDC2021WD01862

Compatible Vehicles (93)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
IVECODAILY IV Dumptruck 35C10 K2006 - present
IVECODAILY IV Dumptruck 35C11 K, 35C11 DK, 35S11 K, 35S11 DK2007 - present
IVECODAILY IV Dumptruck 35C122006 - present
IVECODAILY IV Dumptruck 35C13 K, 35C13 DK, 35S13 K, 35S13 DK2007 - present
IVECODAILY IV Dumptruck 35C14 K, 35C14 DK, 35S14 K, 35S14 DK2007 - present
IVECODAILY IV Dumptruck 35C152006 - present
IVECODAILY IV Dumptruck 35C17 K, 35C17 DK, 35S17 K, 35S17 DK2007 - present
IVECODAILY IV Dumptruck 35C182006 - present
IVECODAILY IV Dumptruck 35S14 K, 35S14 DK2007 - present
IVECODAILY IV Bus 35S14, 35S14 /P2006 - 2011
IVECODAILY IV Commercial 29L10 V2006 - present
IVECODAILY IV Commercial 29L12 V, 29L12 V/P2006 - present
IVECODAILY IV Commercial 29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P2006 - present
IVECODAILY IV Commercial 35C10, 35S102006 - present
IVECODAILY IV Commercial 35C11 V, 35S11 V2007 - present
IVECODAILY IV Commercial 35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P2006 - present
IVECODAILY IV Commercial 35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P2007 - present
IVECODAILY IV Commercial 35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P2007 - present
IVECODAILY IV Commercial 35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P2007 - present
IVECODAILY IV Commercial 35C15 V, 35C15 V/P2006 - present
IVECODAILY IV Commercial 35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P2007 - present
IVECODAILY IV Commercial 35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P2006 - present
IVECODAILY IV Commercial 35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,...2006 - present
IVECODAILY IV Platform / Chassis 29L102006 - 2011
IVECODAILY IV Platform / Chassis 29L122006 - 2011
IVECODAILY IV Platform / Chassis 29L142006 - 2011
IVECODAILY IV Platform / Chassis 35C10, 35S102006 - 2011
IVECODAILY IV Platform / Chassis 35C11, 35S11, 35S11 D, 35S11 /P2007 - 2011
IVECODAILY IV Platform / Chassis 35C12, 35S122006 - 2011
IVECODAILY IV Platform / Chassis 35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P2007 - 2011
IVECODAILY IV Platform / Chassis 35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,...2007 - present
IVECODAILY IV Platform / Chassis 35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P2007 - 2011
IVECODAILY IV Platform / Chassis 35C14, 35S14, 35S14 /P2006 - 2011
IVECODAILY IV Platform / Chassis 35C152006 - 2011
IVECODAILY IV Platform / Chassis 35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D2007 - 2011
IVECODAILY IV Platform / Chassis 35C18, 35S182006 - 2011
IVECODAILY IV Platform / Chassis 35S17 W, 35S17 WD2007 - 2011
IVECODAILY IV Platform / Chassis 50C182006 - 2011
IVECODAILY LINE Bus 50C/E2015 - present
IVECODAILY TOURYS Bus 50C18, 65C182016 - present
IVECODAILY V Dumptruck 35C11K, 35S11DKP2011 - present
IVECODAILY V Dumptruck 35C13K, 35C13DKP2011 - present
IVECODAILY V Dumptruck 35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K2011 - present
IVECODAILY V Dumptruck 35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K2011 - present
IVECODAILY V Commercial 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V2011 - present
IVECODAILY V Commercial 29S11, 29L11, 35C11, 35S11, 40C112011 - present
IVECODAILY V Commercial 29S13, 29L13, 35C13, 35S13, 40C13, 40S132011 - present
IVECODAILY V Commercial 35C15 V, 40C15 V, 45C15 V, 50C15 V, 60C15 V,65C15 V2011 - present
IVECODAILY V Commercial 35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C172011 - present
IVECODAILY V Commercial 35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V2011 - present
Show all 93 vehicles
