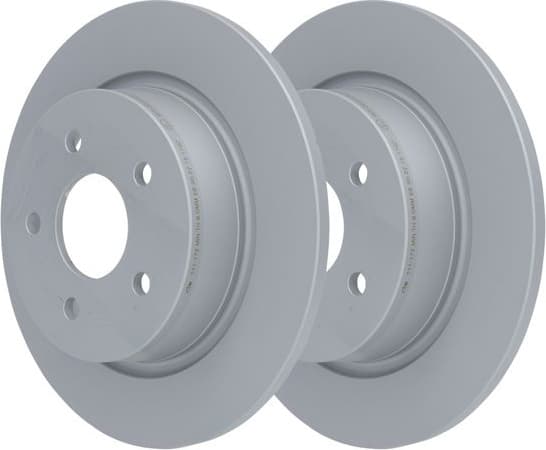

Brake Disc 24.0111-0172.1
Click to zoom
ATE

Brake Disc 24.0111-0172.1

SKU: 24.0111-0172.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

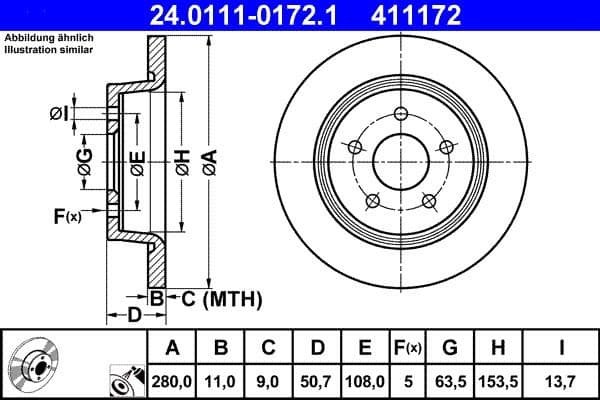

Product Details

Brand
ATE
SKU / MPN
24.0111-0172.1
Bolt hole circle (mm)
108
Bore diameter (mm)
13.7
Brake disc thickness (mm)
11
Brake disc type
solid
Centering diameter (mm)
63.5
Height (mm)
50.7
Inner diameter (mm)
153.5
Minimum thickness (mm)
9
Number of holes
5
Outer diameter (mm)
280
Surface
Coated
Approval
E1 90R-02C0165/0529
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

528920258331258341117214216521683383168338409864797621815202583231251C250136420400663337864255389PRO8001251C8DD355118211AV612A315AAAV612A315BAF1024P

Compatible Vehicles (72)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDC-MAX II 1.0 EcoBoost2012 - present
FORDC-MAX II 1.0 EcoBoost2012 - present
FORDC-MAX II 1.5 EcoBoost2015 - present
FORDC-MAX II 1.5 EcoBoost2015 - present
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi ECOnetic2015 - present
FORDC-MAX II 1.6 EcoBoost2010 - present
FORDC-MAX II 1.6 EcoBoost2010 - present
FORDC-MAX II 1.6 Flexifuel2011 - present
FORDC-MAX II 1.6 LPG2012 - present
FORDC-MAX II 1.6 LPG2012 - present
FORDC-MAX II 1.6 TDCi2010 - present
FORDC-MAX II 1.6 TDCi2010 - present
FORDC-MAX II 1.6 Ti2010 - present
FORDC-MAX II 1.6 Ti2010 - present
FORDC-MAX II 1.6 Ti2010 - present
FORDC-MAX II 2.0 TDCi2010 - present
FORDC-MAX II 2.0 TDCi2010 - present
FORDC-MAX II 2.0 TDCi2011 - present
FORDC-MAX II 2.0 TDCi2015 - present
FORDC-MAX II 2.0 TDCi2015 - present
FORDGRAND C-MAX 1.0 EcoBoost2012 - present
FORDGRAND C-MAX 1.0 EcoBoost2012 - present
FORDGRAND C-MAX 1.5 EcoBoost2015 - present
FORDGRAND C-MAX 1.5 EcoBoost2015 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX 1.6 EcoBoost2010 - present
FORDGRAND C-MAX 1.6 EcoBoost2010 - present
FORDGRAND C-MAX 1.6 TDCi2010 - present
FORDGRAND C-MAX 1.6 TDCi2010 - present
FORDGRAND C-MAX 1.6 Ti2010 - present
FORDGRAND C-MAX 1.6 Ti2010 - present
FORDGRAND C-MAX 2.0 TDCi2010 - present
FORDGRAND C-MAX 2.0 TDCi2011 - present
FORDGRAND C-MAX 2.0 TDCi2011 - present
FORDGRAND C-MAX 2.0 TDCi2011 - present
FORDGRAND C-MAX 2.0 TDCi2015 - present
FORDGRAND C-MAX 2.0 TDCi2015 - present
FORDKUGA II 1.5 EcoBoost2016 - present
FORDKUGA II 1.5 TDCi2016 - present
FORDKUGA II 1.6 EcoBoost2013 - present
FORDKUGA II 1.6 EcoBoost 4x42013 - present
FORDKUGA II 2.0 EcoBoost 4x42017 - present
FORDKUGA II 2.0 TDCi2013 - present
FORDKUGA II 2.0 TDCi2013 - present
FORDKUGA II 2.0 TDCi 4x42013 - present
FORDKUGA II 2.0 TDCi 4x42013 - present
FORDKUGA II 2.0 TDCi 4x42013 - present
Show all 72 vehicles
