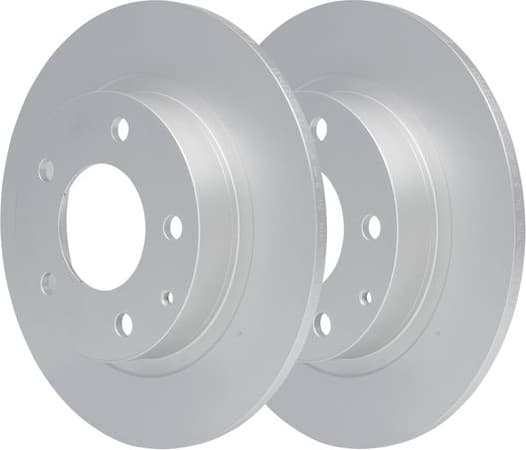

Brake Disc 24.0110-0234.1
Click to zoom
ATE

Brake Disc 24.0110-0234.1

SKU: 24.0110-0234.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

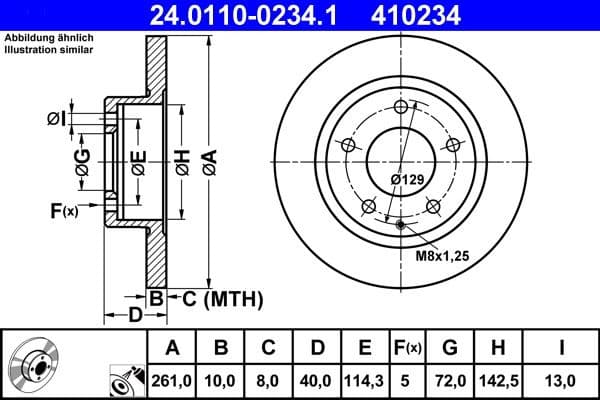

Product Details

Brand
ATE
SKU / MPN
24.0110-0234.1
Bolt hole circle (mm)
114.3
Bore diameter (mm)
13
Brake disc thickness (mm)
10
Brake disc type
solid
Centering diameter (mm)
72
Height (mm)
40
Inner diameter (mm)
142.5
Minimum thickness (mm)
8
Number of holes
5
Outer diameter (mm)
261
Surface
Coated
Approval
E1 90R-02C0165/0681
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

55125202114028614286618645820322823078641023462060080078612651543415598087352100873521109864786334006633007788561717B561717J8DD3551032319206210098200062101BAR10234BDC3959BG2806BS3959BSF3959D1287D2208DDF524DDF524CDDF524C1DF2705DF29786GA3Y26251GA4Y26251GA5Y26251GA5Y26251AGA5Y26251CGA5Y26251DGA7Y26251

Compatible Vehicles (45)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDUSA PROBE II 2.0 16V1993 - 1998
FORDUSA PROBE II 2.5 V6 24V1993 - 1998
FORDUSA PROBE II 2.5 V6 24V1994 - 1998
MAZDA626 IV 1.8 i1992 - 1997
MAZDA626 IV 1.8 i1994 - 1997
MAZDA626 IV 1.8 i1994 - 1997
MAZDA626 IV 2.0 D1994 - 1997
MAZDA626 IV 2.0 D GLX Comprex1992 - 1997
MAZDA626 IV 2.0 i1992 - 1997
MAZDA626 IV 2.0 i 4WD1992 - 1997
MAZDA626 IV Hatchback 1.81991 - 1997
MAZDA626 IV Hatchback 1.81994 - 1997
MAZDA626 IV Hatchback 2.0 D GLX Comprex1993 - 1997
MAZDA626 IV Hatchback 2.0 i1991 - 1997
MAZDA626 IV Hatchback 2.5 24V1992 - 1997
MAZDA626 IV Hatchback 2.5 24V1994 - 1997
MAZDA626 V 1.81999 - 2002
MAZDA626 V 2.01997 - 2002
MAZDA626 V 2.01998 - 2002
MAZDA626 V 2.0 DI TD1998 - 2002
MAZDA626 V 2.0 TD2000 - 2002
MAZDA626 V 2.0 Turbo DI1998 - 2002
MAZDA626 V Hatchback 1.91999 - 2002
MAZDA626 V Hatchback 2.01997 - 2002
MAZDA626 V Hatchback 2.0 DITD1998 - 2002
MAZDA626 V Hatchback 2.0 H.P.1998 - 2002
MAZDA626 V Hatchback 2.0 TD2000 - 2002
MAZDA626 V Hatchback 2.0 Turbo DI1998 - 2002
MAZDA626 V Station Wagon 1.81998 - 2000
MAZDA626 V Station Wagon 1.82000 - 2002
MAZDA626 V Station Wagon 2.01998 - 2002
MAZDA626 V Station Wagon 2.0 H.P.1998 - 2002
MAZDAMX-6 2.01992 - 1997
MAZDAMX-6 2.5 24V1992 - 1997
MAZDAMX-6 2.5 24V1993 - 1995
MAZDAMX-6 2.5 i 24V1994 - 1997
MAZDAPREMACY 1.91999 - 2005
MAZDAPREMACY 1.91999 - 2005
MAZDAPREMACY 2.02001 - 2005
MAZDAPREMACY 2.0 TD1999 - 2000
MAZDAPREMACY 2.0 TD2000 - 2005
MAZDAXEDOS 6 1.6 16V1992 - 1994
MAZDAXEDOS 6 1.6 16V1994 - 1999
MAZDAXEDOS 6 2.0 V61992 - 1994
MAZDAXEDOS 6 2.0 V61994 - 1999
