Alternator 0986083340
Click to zoom
BOSCH

Alternator 0986083340

SKU: 0986083340

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
BOSCH
SKU / MPN
0986083340
Alternator charging current (a)
140
Alternator type
excl. vacuum pump
Belt pulley (mm)
53
Clamp
B+(M8),LIN1
Distance from belt pulley to alternator (mm)
31
Fastening type
Double Pivot Lever
Length (mm)
207
Number of grooves
6

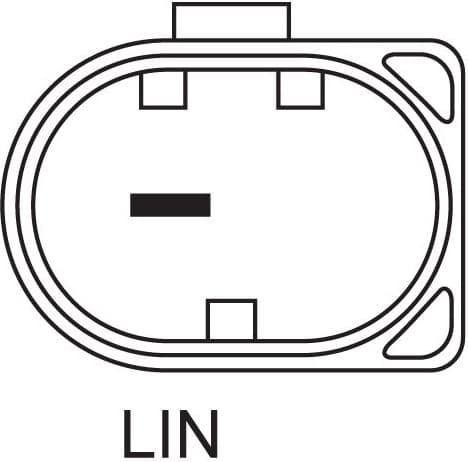

Plug type ID
PL166-1pin
Pulleys
with freewheel belt pulley
Recommended additional repairs
V-Belt/V-ribbed Belt
Rotation direction
Clockwise rotation
Voltage (v)
14
Alternator charge current (A)
140
Pulley diameter (mm)
53
Terminal
B+(M8),LIN1
Direction of rotation
Clockwise
Recommended repair extension
V-belt / multi-v belt
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

04C903021A04C903023K04C903023M04E903015Q

Compatible Vehicles (209)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
AUDIA1 1.0 TFSI2015 - 2018
AUDIA1 1.0 TFSI2016 - 2018
AUDIA1 1.4 TFSI2012 - 2015
AUDIA1 1.4 TFSI2014 - 2018
AUDIA1 1.4 TSI2014 - 2018
AUDIA1 Sportback 1.0 TFSI2015 - 2018
AUDIA1 Sportback 1.0 TFSI2016 - 2018
AUDIA1 Sportback 1.4 TFSI2012 - 2015
AUDIA1 Sportback 1.4 TFSI2014 - 2018
AUDIA1 Sportback 1.4 TSI2014 - 2018
AUDIA3 1.0 TFSI2016 - present
AUDIA3 1.2 TFSI2013 - present
AUDIA3 1.2 TFSI2014 - present
AUDIA3 1.4 TFSI2012 - present
AUDIA3 1.4 TFSI2013 - present
AUDIA3 1.4 TFSI2014 - present
AUDIA3 1.4 TSI2014 - present
AUDIA3 1.5 TFSI2017 - present
AUDIA3 Limousine 1.0 TFSI2016 - 2018
AUDIA3 Limousine 1.2 TFSI2013 - present
AUDIA3 Limousine 1.2 TFSI2014 - present
AUDIA3 Limousine 1.4 TFSI2013 - present
AUDIA3 Limousine 1.4 TFSI2013 - present
AUDIA3 Limousine 1.4 TFSI2013 - present
AUDIA3 Limousine 1.4 TSI2014 - present
AUDIA3 Limousine 1.5 TFSI2017 - 2018
AUDIA3 Sportback 1.0 TFSI2016 - present
AUDIA3 Sportback 1.2 TFSI2013 - present
AUDIA3 Sportback 1.2 TFSI2014 - present
AUDIA3 Sportback 1.4 TFSI2012 - present
AUDIA3 Sportback 1.4 TFSI2013 - present
AUDIA3 Sportback 1.4 TFSI2014 - present
AUDIA3 Sportback 1.4 TFSI g-tron2013 - present
AUDIA3 Sportback 1.4 TSI2014 - present
AUDIA3 Sportback 1.5 TFSI2017 - present
AUDIA3 Convertible 1.4 TFSI2013 - present
AUDIA3 Convertible 1.4 TFSI2014 - present
AUDIA3 Convertible 1.4 TFSI2016 - present
AUDIA3 Convertible 1.4 TSI2014 - present
AUDIA3 Convertible 1.5 TFSI2017 - 2018
AUDIQ2 1.0 TFSI2016 - present
AUDIQ2 1.4 TFSI2016 - present
AUDIQ3 1.4 TFSI2016 - present
AUDIQ3 1.4 TSI2013 - present
SEATALHAMBRA 1.4 TSI2015 - present
SEATARONA 1.0 TSI2017 - present
SEATARONA 1.0 TSI2017 - present
SEATARONA 1.5 TSI2017 - present
SEATATECA 1.0 TSI2016 - present
SEATATECA 1.4 TSI2016 - present
Show all 209 vehicles
