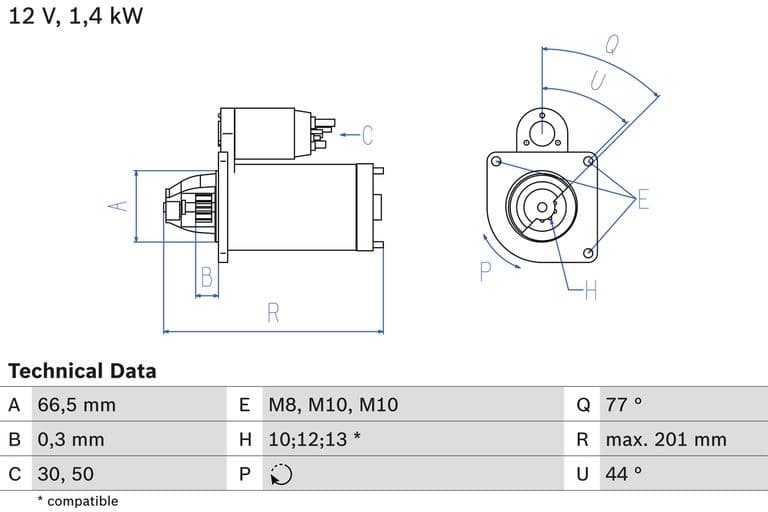

Starter 0986022800
Click to zoom
BOSCH

Starter 0986022800

SKU: 0986022800

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
BOSCH
SKU / MPN
0986022800
Clamp
50
Flange diameter (mm)
66.5
Jaw opening angle measurement (degree)
77
Length (mm)
201
Mounting angle (degrees)
44
Mounting bore angle measurement (degree)
44
Number of mounting bores
3
Number of teeth
13
Number of threaded holes
3
Pinion rest position (mm)
0.77
Position degree
rechts
Rated power (kW)
1.4
Rotation direction
Clockwise rotation
Starter type
Self-supporting
Thread size
M8
Thread size 1
M10x1.5
Thread size 2
M10x1.5
Voltage (v)
12
Terminal
50
Direction of rotation
Clockwise
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

22802330000Q0F2330000Q1H2330000QA0233000603R233003152R233003329R23300BC40023300BC40B43822445838860790603007711135334820025100782002851288200306595820039959482005846758200584843820083647340470246143838EA738528231A6079060300CS1332DRS3985LRS01968LRS1968M000T21471M000T87881M0T21471M0T87881TS12E9

Compatible Vehicles (229)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
DACIADOKKER Van / MPV 1.5 Blue dCi 952019 - present
DACIADOKKER Van / MPV 1.5 dCi2012 - present
DACIADOKKER Van / MPV 1.5 dCi 75 / Blue dCi 752012 - present
DACIADOKKER Minibus 1.5 Blue dCi 952018 - present
DACIADOKKER Minibus 1.5 dCi2012 - present
DACIADOKKER Minibus 1.5 dCi / Blue dCi 752012 - present
DACIADUSTER 1.5 dCi2010 - present
DACIADUSTER 1.5 dCi2010 - present
DACIADUSTER 1.5 dCi2010 - present
DACIADUSTER 1.5 dCi2013 - present
DACIADUSTER 1.5 dCi 1102017 - present
DACIADUSTER 1.5 dCi 110 4x42017 - present
DACIADUSTER 1.5 dCi 1152017 - present
DACIADUSTER 1.5 dCi 115 4x42017 - present
DACIADUSTER 1.5 dCi 4x42010 - present
DACIADUSTER 1.5 dCi 4x42010 - present
DACIADUSTER 1.5 dCi 4x42013 - present
DACIADUSTER 1.5 dCi 952017 - present
DACIALODGY 1.5 Blue dCi 1152018 - present
DACIALODGY 1.5 Blue dCi 952018 - present
DACIALODGY 1.5 dCi2010 - present
DACIALODGY 1.5 dCi2012 - present
DACIALODGY 1.5 dCi2015 - present
DACIALOGAN 1.5 dCi2005 - present
DACIALOGAN 1.5 dCi2006 - present
DACIALOGAN 1.5 dCi2007 - present
DACIALOGAN 1.5 dCi2010 - present
DACIALOGAN 1.5 dCi2010 - present
DACIALOGAN EXPRESS 1.5 dCi2009 - present
DACIALOGAN EXPRESS 1.5 dCi2009 - present
DACIALOGAN EXPRESS 1.5 dCi2010 - present
DACIALOGAN EXPRESS 1.5 dCi2010 - present
DACIALOGAN II 1.5 Blue dCi 952018 - present
DACIALOGAN II 1.5 dCi2012 - present
DACIALOGAN II 1.5 dCi / Blue dCi 752012 - present
DACIALOGAN MCV 1.5 dCi2007 - present
DACIALOGAN MCV 1.5 dCi2007 - present
DACIALOGAN MCV 1.5 dCi2010 - present
DACIALOGAN MCV 1.5 dCi2010 - present
DACIALOGAN MCV II 1.5 dCi2013 - present
DACIALOGAN MCV II 1.5 dCi2013 - present
DACIALOGAN Pickup 1.5 dCi2008 - present
DACIALOGAN Pickup 1.5 dCi2008 - present
DACIALOGAN Pickup 1.5 dCi2010 - present
DACIALOGAN Pickup 1.5 dCi2010 - present
DACIASANDERO 1.5 dCi2008 - present
DACIASANDERO 1.5 dCi2008 - present
DACIASANDERO 1.5 dCi2010 - present
DACIASANDERO 1.5 dCi2010 - present
DACIASANDERO II 1.5 dCi2012 - present
Show all 229 vehicles
