Starter 0986020290
Click to zoom
BOSCH

Starter 0986020290

SKU: 0986020290

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

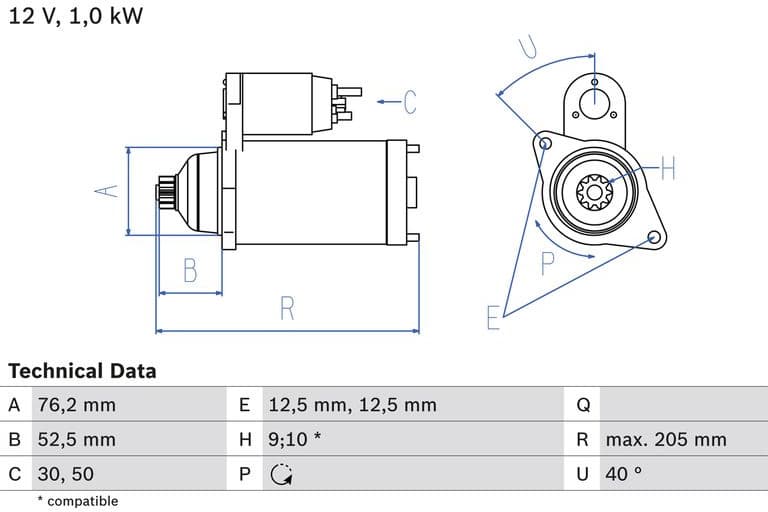

Product Details

Brand
BOSCH
SKU / MPN
0986020290
Bore diameter 2 (mm)
12.5
Bore diameter (mm)
12.5
Clamp
50
Flange diameter (mm)
76.2
Length (mm)
205
Mounting angle (degrees)
40
Mounting bore angle measurement (degree)
40
Number of mounting bores
2
Number of teeth
9
Pinion rest position (mm)
52.5
Position degree
links
Rated power (kW)
1
Rotation direction
Anticlockwise rotation
Starter type
Floating pinion
Voltage (v)
12
Terminal
30
Direction of rotation
Counter-clockwise
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

0001120406000112040702T911023R02T911023RX02T911023S02T911023SX02T911024A02T911024AX02T911024B02T911024K02T911024KX02T911024N02T911024NX02Z911023C02Z911023CX202943817243821645821445836531651435266068EA738199001CS1330D6GS12DRT0290LRS01675LRS1675TS10E26

Compatible Vehicles (126)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
AUDIA1 1.2 TFSI2010 - 2015
AUDIA1 Sportback 1.2 TFSI2012 - 2015
AUDIA3 1.6 FSI2003 - 2007
AUDIA3 Sportback 1.6 FSI2004 - 2007
SEATALTEA 1.4 16V2006 - present
SEATALTEA XL 1.4 16V2006 - present
SEATCORDOBA 1.22002 - 2006
SEATCORDOBA 1.2 12V2006 - 2009
SEATCORDOBA 1.4 16V2002 - 2007
SEATCORDOBA 1.4 16V2002 - 2009
SEATCORDOBA 1.4 16V2006 - 2009
SEATCORDOBA 1.62003 - 2009
SEATCORDOBA 1.6 16V2006 - 2009
SEATIBIZA III 1.22002 - 2006
SEATIBIZA III 1.22007 - 2008
SEATIBIZA III 1.2 12V2006 - 2009
SEATIBIZA III 1.4 16V2002 - 2007
SEATIBIZA III 1.4 16V2002 - 2009
SEATIBIZA III 1.4 16V2006 - 2009
SEATIBIZA III 1.62003 - 2009
SEATIBIZA III 1.6 16V2006 - 2009
SEATIBIZA IV 1.22008 - present
SEATIBIZA IV 1.22009 - present
SEATIBIZA IV 1.2 TSI2010 - present
SEATIBIZA IV 1.2 TSI2012 - present
SEATIBIZA IV 1.42008 - present
SEATIBIZA IV 1.62008 - present
SEATIBIZA IV 1.6 LPG2011 - present
SEATIBIZA IV SC 1.22008 - present
SEATIBIZA IV SC 1.22009 - present
SEATIBIZA IV SC 1.2 TSI2010 - present
SEATIBIZA IV SC 1.2 TSI2012 - present
SEATIBIZA IV SC 1.42008 - present
SEATIBIZA IV SC 1.62008 - present
SEATIBIZA IV SC 1.6 LPG2011 - present
SEATIBIZA IV ST 1.22010 - present
SEATIBIZA IV ST 1.22010 - present
SEATIBIZA IV ST 1.2 TSI2010 - present
SEATIBIZA IV ST 1.2 TSI2012 - present
SEATIBIZA IV ST 1.42010 - present
SEATLEON 1.4 16V2006 - 2012
SEATLEON 2.0 TFSI2009 - 2012
SEATTOLEDO III 1.4 16V2006 - 2009
SEATTOLEDO IV 1.22012 - present
SEATTOLEDO IV 1.2 TSI2012 - present
SEATTOLEDO IV 1.2 TSI2012 - present
SKODAFABIA I 1.22002 - 2008
SKODAFABIA I 1.22003 - 2008
SKODAFABIA I 1.4 16V1999 - 2008
SKODAFABIA I 1.4 16V1999 - 2008
Show all 126 vehicles
