Starter 0986020230
Click to zoom
BOSCH

Starter 0986020230

SKU: 0986020230

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

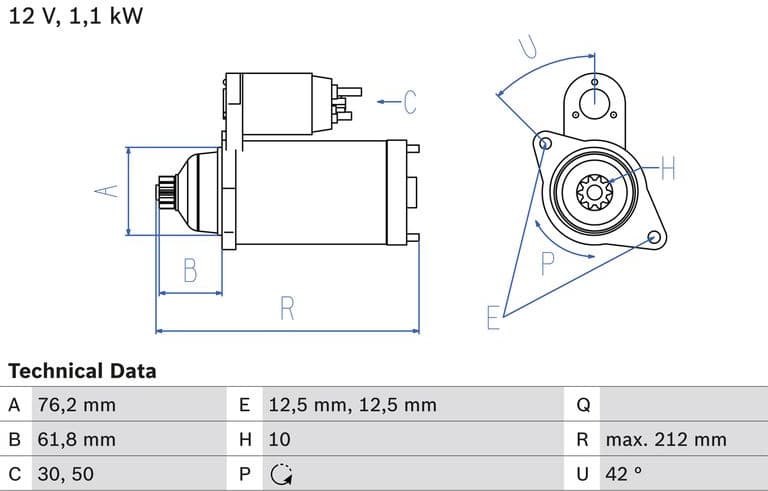

Product Details

Brand
BOSCH
SKU / MPN
0986020230
Bore diameter 2 (mm)
12.5
Bore diameter (mm)
12.5
Clamp
50
Flange diameter (mm)
76.2
Length (mm)
212
Mounting angle (degrees)
42
Mounting bore angle measurement (degree)
42
Number of mounting bores
2
Number of teeth
10
Pinion rest position (mm)
61.8
Position degree
links
Rated power (kW)
1.1
Rotation direction
Anticlockwise rotation
Starter type
Floating pinion
Voltage (v)
12
Terminal
30
Direction of rotation
Counter-clockwise
EU VAT-registered company
Shipped from the EU

Compatible Vehicles (138)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
AUDIA1 2.0 TFSI quattro2012 - 2012
AUDIA3 1.62003 - 2012
AUDIA3 1.6 FSI2003 - 2007
AUDIA3 1.8 TFSI2006 - 2012
AUDIA3 1.8 TFSI quattro2008 - 2012
AUDIA3 2.0 FSI2003 - 2008
AUDIA3 2.0 TFSI2004 - 2012
AUDIA3 2.0 TFSI quattro2004 - 2012
AUDIA3 S3 quattro2006 - 2012
AUDIA3 S3 quattro2007 - 2012
AUDIA3 Sportback 1.62004 - 2013
AUDIA3 Sportback 1.6 FSI2004 - 2007
AUDIA3 Sportback 1.8 TFSI2006 - 2013
AUDIA3 Sportback 1.8 TFSI quattro2008 - 2013
AUDIA3 Sportback 2.0 FSI2004 - 2008
AUDIA3 Sportback 2.0 TFSI2004 - 2013
AUDIA3 Sportback 2.0 TFSI quattro2004 - 2013
AUDIA3 Sportback S3 quattro2008 - 2013
AUDIA3 Sportback S3 quattro2008 - 2013
AUDIA3 Convertible 2.0 TFSI2008 - 2013
AUDIQ3 2.0 TFSI quattro2011 - present
AUDITT 2.0 TFSI2006 - 2010
AUDITT 2.0 TFSI2010 - 2014
AUDITT 2.0 TFSI quattro2008 - 2010
AUDITT 2.0 TTS quattro2008 - present
AUDITT 2.0 TTS quattro2008 - present
AUDITT Roadster 2.0 TFSI2007 - 2010
AUDITT Roadster 2.0 TFSI2010 - 2014
AUDITT Roadster 2.0 TFSI quattro2008 - 2010
AUDITT Roadster 2.0 TTS quattro2008 - present
AUDITT Roadster 2.0 TTS quattro2008 - present
SEATALTEA 2.0 FSI2004 - 2009
SEATALTEA 2.0 TFSI2006 - 2009
SEATALTEA XL 1.2 TSI2010 - present
SEATALTEA XL 2.0 FSI2006 - 2009
SEATALTEA XL 2.0 TFSI 4x42007 - 2009
SEATIBIZA III 1.6 16V2006 - 2009
SEATLEON 1.62005 - 2012
SEATLEON 1.6 LPG2009 - 2012
SEATLEON 2.0 Cupra R2009 - 2012
SEATLEON 2.0 FSI2005 - 2010
SEATLEON 2.0 TFSI2005 - 2006
SEATLEON 2.0 TFSI2005 - 2009
SEATLEON 2.0 TFSI2006 - 2011
SEATLEON 2.0 TFSI2009 - 2012
SEATTOLEDO III 1.62004 - 2009
SEATTOLEDO III 1.8 TFSI2007 - 2009
SEATTOLEDO III 2.0 FSI2004 - 2009
SEATTOLEDO III 2.0 TFSI2005 - 2009
SEATTOLEDO IV 1.62013 - present
Show all 138 vehicles
