Brake Disc 0986479A23
Click to zoom
BOSCH

Brake Disc 0986479A23

SKU: 0986479A23

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
BOSCH
SKU / MPN
0986479A23

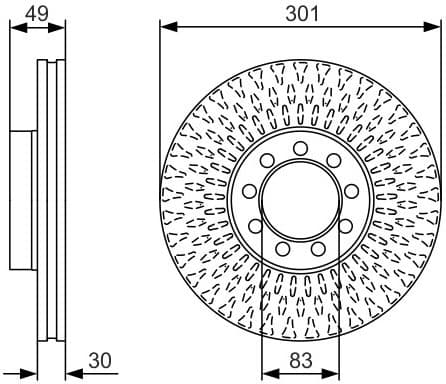

Bolt hole circle (mm)
111
Bore diameter up to (mm)
14.5
Brake disc thickness (mm)
30
Brake disc type
Vented
Centering diameter (mm)
83
Fulfils ece standard
ECE-R90
Height (mm)
59
Minimum thickness (mm)
27
Number of holes
9
Outer diameter (mm)
300.8
Surface
Oiled
EU VAT-registered company
Shipped from the EU

Compatible Vehicles (44)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
IVECODAILY IV Dumptruck 60C17 K, 60C17 DK2007 - present
IVECODAILY IV Dumptruck 65C14 K, 65C14 DK2007 - present
IVECODAILY IV Dumptruck 65C17 K, 65C17 DK, 65C17KK2007 - present
IVECODAILY IV Dumptruck 70C14 K, 70C14 DK, 70C14 KK2007 - present
IVECODAILY IV Dumptruck 70C17 K, 70C17 DK, 70C17 KK2007 - present
IVECODAILY IV Commercial 60C17 V, 60C17 V/P2007 - present
IVECODAILY IV Commercial 65C14 V, 65C14 V/P2007 - present
IVECODAILY IV Commercial 65C152006 - present
IVECODAILY IV Commercial 65C17 V, 65C17 V/P2007 - present
IVECODAILY IV Commercial 65C182006 - present
IVECODAILY IV Commercial 70C14 V, 70C14 V/P2007 - present
IVECODAILY IV Commercial 70C17V, 70C17 V/P2007 - present
IVECODAILY IV Platform / Chassis 60C17, 60C17 /P2007 - 2011
IVECODAILY IV Platform / Chassis 65C14 G, 65C14 G/P, 65C14 GD, 65C14 GD/P2007 - 2011
IVECODAILY IV Platform / Chassis 65C14, 65C14 /P2007 - 2011
IVECODAILY IV Platform / Chassis 65C15, 65C15 /P, 65C15 D, 65C15 D/P2006 - 2011
IVECODAILY IV Platform / Chassis 65C17, 65C17 /P2007 - 2011
IVECODAILY IV Platform / Chassis 65C182006 - 2011
IVECODAILY IV Platform / Chassis 70C14, 70C14 /P2007 - 2011
IVECODAILY IV Platform / Chassis 70C152007 - present
IVECODAILY IV Platform / Chassis 70C17, 70C17P2007 - 2011
IVECODAILY TOURYS Bus 50C18, 65C182016 - present
IVECODAILY V Dumptruck 35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K2011 - present
IVECODAILY V Dumptruck 35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K2011 - present
IVECODAILY V Commercial 35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C172011 - present
IVECODAILY V Platform / Chassis 35C15, 35S15, 40C15, 45C15, 50C15, 60C15, 65C15, 70C152011 - 2014
IVECODAILY V Platform / Chassis 35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C172011 - 2014
IVECODAILY V Platform / Chassis 35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C212011 - 2014
IVECODAILY VI Bus 40C15, 50C15, 60C152016 - present
IVECODAILY VI Bus 40C18, 50C18, 60C182016 - present
IVECODAILY VI Box Body / Estate 35S15, 35C15, 40C15, 50C152016 - present
IVECODAILY VI Box Body / Estate Natural Power 35S14, 35C14, 40C14, 50C142016 - present
IVECODAILY VI Commercial 35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C152014 - present
IVECODAILY VI Commercial 35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C152016 - present
IVECODAILY VI Commercial 35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C172014 - present
IVECODAILY VI Commercial 35S18, 35C18, 40C18, 50C18, 60C18, 65C18, 70C182016 - present
IVECODAILY VI Commercial 35S21, 35C21, 40C21, 50C212014 - present
IVECODAILY VI Commercial NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C2014 - present
IVECODAILY VI Platform / Chassis 35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,...2014 - present
IVECODAILY VI Platform / Chassis 35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C152016 - present
IVECODAILY VI Platform / Chassis 35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,...2014 - present
IVECODAILY VI Platform / Chassis 35S18, 35C18, 40C18, 45C18, 50C18, 60C18, 65C18, 70C182016 - present
IVECODAILY VI Platform / Chassis 35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C212014 - present
IVECODAILY VI Platform / Chassis NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C2014 - present
