Starter 0986019361
Click to zoom
BOSCH

Starter 0986019361

SKU: 0986019361

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

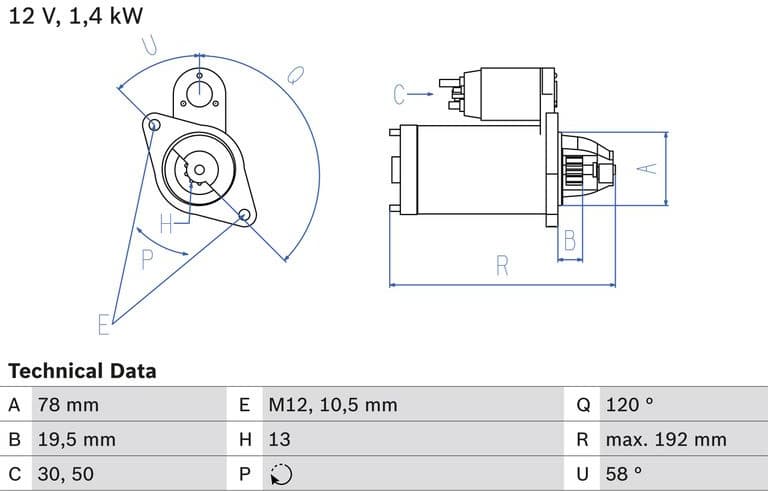

Product Details

Brand
BOSCH
SKU / MPN
0986019361
Bore diameter 2 (mm)
10.5
Clamp
50
Flange diameter (mm)
78
Jaw opening angle measurement (degree)
120
Length (mm)
192
Mounting angle (degrees)
58
Mounting bore angle measurement (degree)
58
Number of mounting bores
1
Number of teeth
13
Number of threaded holes
1
Pinion rest position (mm)
19.5
Position degree
links
Rated power (kW)
1.4
Rotation direction
Clockwise rotation
Starter type
Self-supporting
Thread size
M12
Voltage (v)
12
Terminal
30
Direction of rotation
Clockwise
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

120259131200PLZD0062020006202043620208762021039512659956220093169014931690159317402893174034971891189738606298014743897189118089718911818973860620898014743089801474318980147432R1540010R1540027S114829S114829AS114829BS114829CS114829DS114869S114925S114925AS114925BS114925C

Compatible Vehicles (122)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
HONDACIVIC VII Hatchback 1.7 CTDi2002 - 2005
OPELASTRA G Box Body / Estate 1.7 DTI 16V2000 - 2005
OPELASTRA G Hatchback 1.7 CDTI2003 - 2009
OPELASTRA G Hatchback 1.7 DTI 16V2000 - 2005
OPELASTRA G Sedan 1.7 CDTI2003 - 2009
OPELASTRA G Sedan 1.7 DTI 16V2000 - 2005
OPELASTRA G Estate 1.7 CDTI2003 - 2009
OPELASTRA G Estate 1.7 DTI 16V2000 - 2004
OPELASTRA H 1.7 CDTI2004 - present
OPELASTRA H 1.7 CDTI2004 - present
OPELASTRA H 1.7 CDTI2007 - present
OPELASTRA H 1.7 CDTI2007 - present
OPELASTRA H GTC 1.7 CDTI2005 - present
OPELASTRA H GTC 1.7 CDTI2007 - present
OPELASTRA H GTC 1.7 CDTI2007 - present
OPELASTRA H GTC 1.7 CDTi2005 - present
OPELASTRA H Saloon 1.7 CDTI2010 - present
OPELASTRA H Box Body / Estate 1.7 CDTI2004 - present
OPELASTRA H Box Body / Estate 1.7 CDTI2007 - present
OPELASTRA H Box Body / Estate 1.7 CDTI2007 - present
OPELASTRA H Sedan 1.7 CDTi2007 - present
OPELASTRA H Sedan 1.7 CDTi2007 - present
OPELASTRA H Estate 1.7 CDTI2004 - present
OPELASTRA H Estate 1.7 CDTI2004 - present
OPELASTRA H Estate 1.7 CDTI2007 - present
OPELASTRA H Estate 1.7 CDTI2007 - present
OPELASTRA J 1.7 CDTI2009 - present
OPELASTRA J 1.7 CDTI2009 - present
OPELASTRA J 1.7 CDTI2009 - present
OPELASTRA J 1.7 CDTI2010 - present
OPELASTRA J GTC 1.7 CDTI2011 - present
OPELASTRA J GTC 1.7 CDTI2011 - present
OPELASTRA J Sports Tourer 1.7 CDTI2010 - present
OPELASTRA J Sports Tourer 1.7 CDTI2010 - present
OPELASTRA J Sports Tourer 1.7 CDTI2010 - present
OPELASTRA J Sports Tourer 1.7 CDTI2010 - present
OPELASTRA J Sedan 1.7 CDTI2012 - present
OPELASTRA J Sedan 1.7 CDTI2012 - present
OPELCOMBO Van / MPV 1.7 CDTI 16V2004 - present
OPELCOMBO Van / MPV 1.7 DI 16V2001 - present
OPELCOMBO Van / MPV 1.7 DTI 16V2001 - present
OPELCOMBO Tour 1.7 CDTI 16V2004 - present
OPELCOMBO Tour 1.7 DI 16V2001 - 2004
OPELCOMBO Tour 1.7 DTI 16V2001 - 2004
OPELCORSA C 1.7 CDTI2003 - 2009
OPELCORSA C 1.7 DI2000 - 2009
OPELCORSA C 1.7 DTI2000 - 2009
OPELCORSA C Hatchback 1.7 CDTi2003 - present
OPELCORSA C Hatchback 1.7 DI 16V2000 - present
OPELCORSA C Hatchback 1.7 DTI 16V2000 - present
