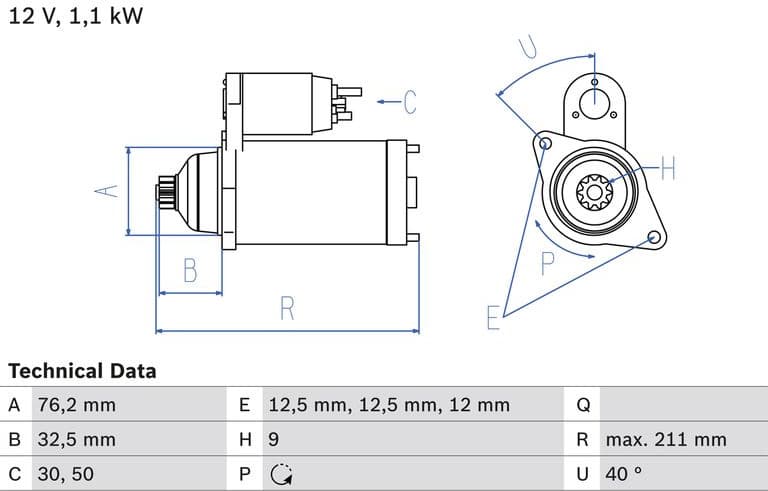

BOSCHBrand BOSCH SKU / MPN 0986017830 Bore diameter 2 (mm) 12.5 Bore diameter (mm) 12.5 Bore 3 (mm) 12 Clamp 50 Flange diameter (mm) 76.2 Length (mm) 211 Mounting angle (degrees) 40 Mounting bore angle measurement (degree) 40 Number of mounting bores 3 Number of teeth 9 Pinion rest position (mm) 32.5 Position degree links Rated power (kW) 1.1 Rotation direction Anticlockwise rotation Starter type Floating pinion Voltage (v) 12 Terminal 30 Direction of rotation Counter-clockwise
Starter 0986017830
SKU: 0986017830
Ask us for a price
Write to us with the part number and your country. We answer with the price and the delivery cost.
Product Details
EU VAT-registered company
Shipped from the EU
OE / Cross-Reference Numbers
This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.
Compatible Vehicles (157)
This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.
