CV joint outer 15-1236
Click to zoom
METELLI

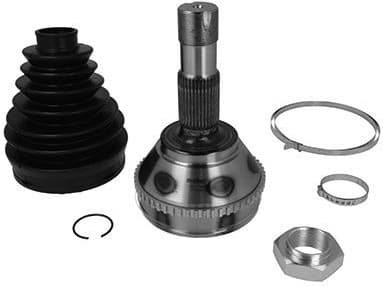

CV joint outer 15-1236

SKU: 15-1236

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
METELLI
SKU / MPN
15-1236
Bellows material
Thermoplast
External toothing wheel side
35
Internal teeth wheel side
45
Internal toothing wheel side
45
Machined
without groove in internal component
Number of teeth abs ring
54

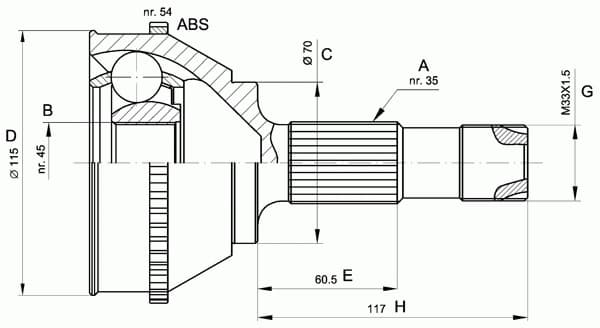

Outer diameter (mm)
113.6
Outer gearing wheel side
35
Seal diameter (mm)
70
Seal ring diameter (mm)
70
Sealing ring diameter (mm)
70
Thread size
M33x1.5
Dimension 1
70
Dimension 2
122
Dimension 3
54
Bellow material
Rubber
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

10K2031495545080149613808015-113215-1236MET1601318.22.6001826320633206343029915113230299530299730299821449800133254K3254k3278K3465K511912511913607-23660713275824S75847S810011854010106956672238095675822808032747472354CI1046CI1047CVJ5131.10CVJ542820CVJ5458.10E302995E302997E302998FI1097

Compatible Vehicles (201)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
CITROENJUMPER I Bus 1.9 D1999 - 2002
CITROENJUMPER I Bus 1.9 TD1994 - 2002
CITROENJUMPER I Bus 1.9 TD1994 - 2002
CITROENJUMPER I Bus 1.9 TD 4x41996 - 2002
CITROENJUMPER I Bus 2.01994 - 2002
CITROENJUMPER I Bus 2.0 4x41996 - 2002
CITROENJUMPER I Bus 2.5 D1994 - 2002
CITROENJUMPER I Bus 2.5 D 4x41996 - 2002
CITROENJUMPER I Bus 2.5 TD1994 - 2002
CITROENJUMPER I Bus 2.5 TD 4x41996 - 2002
CITROENJUMPER I Bus 2.5 TDI 4x41996 - 2000
CITROENJUMPER I Bus 2.5 TDi1996 - 2000
CITROENJUMPER I Bus 2.8 D1999 - 2002
CITROENJUMPER I Bus 2.8 HDi2000 - 2002
CITROENJUMPER I Bus 2.8 HDi 4x42000 - 2002
CITROENJUMPER I Commercial 1.9 D1994 - 2002
CITROENJUMPER I Commercial 1.9 D1999 - 2002
CITROENJUMPER I Commercial 1.9 TD1994 - 2002
CITROENJUMPER I Commercial 1.9 TD1994 - 2002
CITROENJUMPER I Commercial 2.01994 - 2002
CITROENJUMPER I Commercial 2.0 4x41996 - 2002
CITROENJUMPER I Commercial 2.0 HDI2001 - 2002
CITROENJUMPER I Commercial 2.5 D1994 - 2002
CITROENJUMPER I Commercial 2.5 D 4x42000 - 2002
CITROENJUMPER I Commercial 2.5 DT 4x41996 - 1997
CITROENJUMPER I Commercial 2.5 TD1994 - 2002
CITROENJUMPER I Commercial 2.5 TDi1996 - 2000
CITROENJUMPER I Commercial 2.5 TDi 4x42000 - 2000
CITROENJUMPER I Commercial 2.8 D1999 - 2002
CITROENJUMPER I Commercial 2.8 HDi2000 - 2002
CITROENJUMPER I Commercial 2.8 HDi 4x42000 - 2002
CITROENJUMPER I Platform / Chassis 1.9 TD1994 - 2002
CITROENJUMPER I Platform / Chassis 1.9 TD1994 - 2002
CITROENJUMPER I Platform / Chassis 2.01994 - 2002
CITROENJUMPER I Platform / Chassis 2.5 D1994 - 2002
CITROENJUMPER I Platform / Chassis 2.5 D 4x42000 - 2002
CITROENJUMPER I Platform / Chassis 2.5 TD1994 - 2002
CITROENJUMPER I Platform / Chassis 2.5 TDi1996 - 2002
CITROENJUMPER I Platform / Chassis 2.5 TDi 4x42000 - 2002
CITROENJUMPER I Platform / Chassis 2.8 D1999 - 2002
CITROENJUMPER I Platform / Chassis 2.8 HDi2000 - 2002
CITROENJUMPER II Bus 2.02002 - present
CITROENJUMPER II Bus 2.0 bivalent2003 - present
CITROENJUMPER II Bus 2.2 HDi2002 - present
CITROENJUMPER II Bus 2.8 HDi2002 - present
CITROENJUMPER II Bus 2.8 HDi All-wheel Drive2002 - present
CITROENJUMPER II Commercial 2.02002 - present
CITROENJUMPER II Commercial 2.0 bivalent2003 - present
CITROENJUMPER II Commercial 2.2 HDi2002 - present
CITROENJUMPER II Commercial 2.8 HDi2002 - present
Show all 201 vehicles
