Brake Pad Set, disc brake PRIME LINE P24188

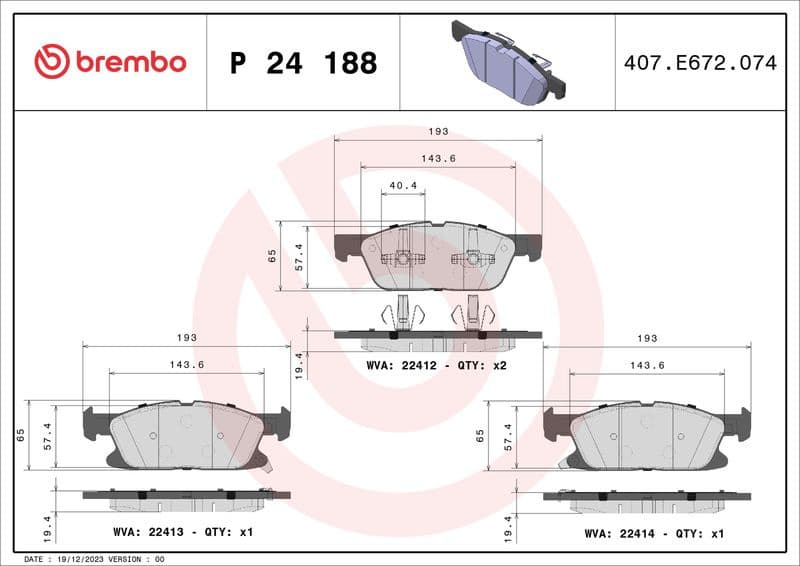

Technical drawing
Click to zoom
BREMBO

Brake Pad Set, disc brake PRIME LINE P24188

SKU: P24188

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
BREMBO
SKU / MPN
P24188
Brake system
ATE
Height (mm)
65
Number of wear indicators (per axle)
2
Additional info
with accessories, with piston clip
Thickness (mm)
19
Wear warning contact
with acoustic wear warning
Width (mm)
193
WVA number
22414
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

1884555224192322680422388246240473625534143501110XKU0PA53014535311041531171153204615320463BR1818BRF1536BRF1544E1GC2K021ACF2GC2001AAF2GC2001ABF2GC2001ACF2GC2001AEF2GC2001AGF2GC2001BCF2GC2001BFF2GC2001CAF2GC2001CBF2GC2001CDF2GC2001CEF2GZ2001AF2GZ2001CF2GZ2001HF2GZ2001KF2GZ2001LF2GZ2001MG2MJ2C452CHBG2MZ2V001ARG3GZ2001BG3GZ2001CHP5Z2001BHP5Z2001CHU2Z2V001A

Compatible Vehicles (27)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDGALAXY III 1.5 EcoBoost2015 - 2018
FORDGALAXY III 2.0 EcoBlue2018 - present
FORDGALAXY III 2.0 EcoBlue2018 - present
FORDGALAXY III 2.0 EcoBlue 4x42018 - present
FORDGALAXY III 2.0 EcoBlue 4x42018 - present
FORDGALAXY III 2.0 EcoBoost2015 - present
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi 4x42015 - 2018
FORDGALAXY III 2.0 TDCi 4x42015 - 2018
FORDGALAXY III 2.0 TDCi Bi-Turbo2015 - 2018
FORDS-MAX 1.5 EcoBoost2015 - 2018
FORDS-MAX 1.5 EcoBoost2018 - present
FORDS-MAX 2.0 EcoBlue2018 - present
FORDS-MAX 2.0 EcoBlue2018 - present
FORDS-MAX 2.0 EcoBlue 4x42018 - present
FORDS-MAX 2.0 EcoBlue 4x42018 - present
FORDS-MAX 2.0 EcoBoost2015 - present
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi 4x42015 - 2018
FORDS-MAX 2.0 TDCi 4x42015 - 2018
FORDS-MAX 2.0 TDCi BI-Turbo2015 - 2018
FORDUSA EDGE 2.0 TDCi AWD2015 - 2018
FORDUSA EDGE 2.0 TDCi Bi-Turbo AWD2015 - 2018
