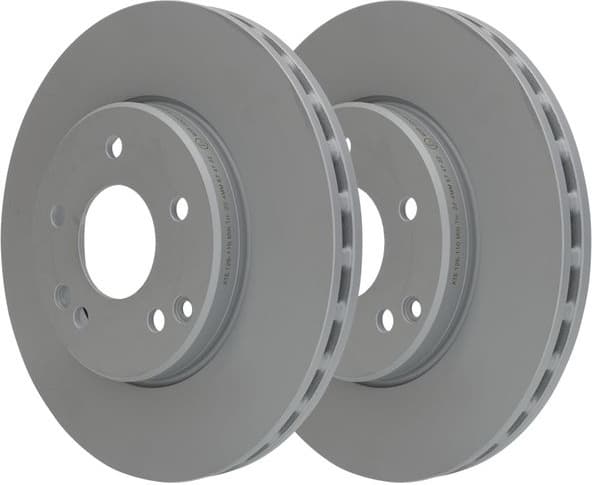

Brake Disc 24.0125-0110.1
Click to zoom
ATE

Brake Disc 24.0125-0110.1

SKU: 24.0125-0110.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
ATE
SKU / MPN
24.0125-0110.1

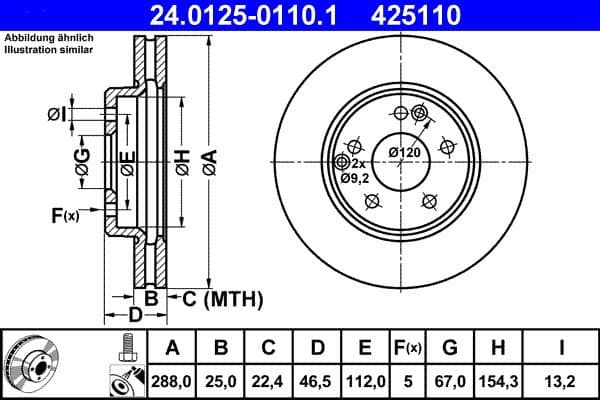

Bolt hole circle (mm)
112
Bore (mm)
13.2
Brake disc thickness (mm)
25
Brake disc type
Vented
Centering diameter (mm)
67
Height (mm)
46.5
Inner diameter (mm)
154.3
Machining
Alloyed/High-carbon
Minimum thickness (mm)
22.4
Number of holes
5
Outer diameter (mm)
288
Additional info
with bolts/screws
Surface
Coated
Approval
E1 90R-02C0115/0008
Hole diameter (mm)
13.2
Processing
Alloyed / high carbon
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

128292E14.03270463105098063AA09.6845.1009.6845.1109.6845.1409.6845.7509.8411.1009.8411.1109.8411.751.2829.2.E14.0327N140327N142.02123-038623-0701400.1435.00400.1435.20400.1435.5050786495.10188865098063AA5213752137PRO54059140327142021186467203332230386230701425110649510800386800701096845100968451109684514

Compatible Vehicles (77)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
CHRYSLERCROSSFIRE 3.22003 - 2007
CHRYSLERCROSSFIRE Roadster 3.22004 - 2007
MERCEDES-BENZC-CLASS C 1802000 - 2002
MERCEDES-BENZC-CLASS C 180 Kompressor2002 - 2007
MERCEDES-BENZC-CLASS C 200 CDI2000 - 2007
MERCEDES-BENZC-CLASS C 200 CDI2001 - 2007
MERCEDES-BENZC-CLASS C 200 CDI2003 - 2007
MERCEDES-BENZC-CLASS C 200 CGI Kompressor2003 - 2007
MERCEDES-BENZC-CLASS C 200 Kompressor1995 - 2000
MERCEDES-BENZC-CLASS C 200 Kompressor1996 - 2000
MERCEDES-BENZC-CLASS C 200 Kompressor2000 - 2002
MERCEDES-BENZC-CLASS C 200 Kompressor2002 - 2007
MERCEDES-BENZC-CLASS C 220 CDI2000 - 2007
MERCEDES-BENZC-CLASS C 220 CDI2000 - 2007
MERCEDES-BENZC-CLASS C 220 CDI2003 - 2007
MERCEDES-BENZC-CLASS C 230 Kompressor1995 - 2000
MERCEDES-BENZC-CLASS C 2401997 - 2000
MERCEDES-BENZC-CLASS C 250 Turbo-D1995 - 2000
MERCEDES-BENZC-CLASS C 2801993 - 2000
MERCEDES-BENZC-CLASS C 2801997 - 2000
MERCEDES-BENZC-CLASS T-Model C 200 T1996 - 2001
MERCEDES-BENZC-CLASS T-Model C 200 T Kompressor1996 - 2001
MERCEDES-BENZC-CLASS T-Model C 200 T Kompressor2000 - 2001
MERCEDES-BENZC-CLASS T-Model C 230 T Kompressor1997 - 2000
MERCEDES-BENZC-CLASS T-Model C 240 T1997 - 2000
MERCEDES-BENZC-CLASS T-Model C 240 T2000 - 2001
MERCEDES-BENZC-CLASS T-Model C 250 T Turbo-D1996 - 2001
MERCEDES-BENZC-CLASS T-Model C 280 T1997 - 2001
MERCEDES-BENZCLC-CLASS CLC 1602009 - 2011
MERCEDES-BENZCLC-CLASS CLC 180 Kompressor2008 - 2011
MERCEDES-BENZCLC-CLASS CLC 200 CDI2008 - 2011
MERCEDES-BENZCLC-CLASS CLC 220 CDI2008 - 2011
MERCEDES-BENZCLK CLK 2001997 - 2002
MERCEDES-BENZCLK CLK 200 CGI2003 - 2009
MERCEDES-BENZCLK CLK 200 Kompressor1997 - 2000
MERCEDES-BENZCLK CLK 200 Kompressor2000 - 2002
MERCEDES-BENZCLK CLK 200 Kompressor2002 - 2009
MERCEDES-BENZCLK CLK 220 CDI2005 - 2009
MERCEDES-BENZCLK CLK 220 CDI2005 - 2009
MERCEDES-BENZCLK CLK 230 Kompressor1997 - 2000
MERCEDES-BENZCLK CLK 230 Kompressor2000 - 2002
MERCEDES-BENZCLK Convertible CLK 2001998 - 2002
MERCEDES-BENZCLK Convertible CLK 200 CGI2003 - 2010
MERCEDES-BENZE-CLASS E 2001995 - 2000
MERCEDES-BENZE-CLASS E 200 CDI1998 - 2002
MERCEDES-BENZE-CLASS E 200 CDI1999 - 2002
MERCEDES-BENZE-CLASS E 200 D1996 - 2002
MERCEDES-BENZE-CLASS E 200 Kompressor2000 - 2002
MERCEDES-BENZE-CLASS E 220 CDI1998 - 1999
MERCEDES-BENZE-CLASS E 220 CDI1999 - 2002
