1 / 4
Click to zoom

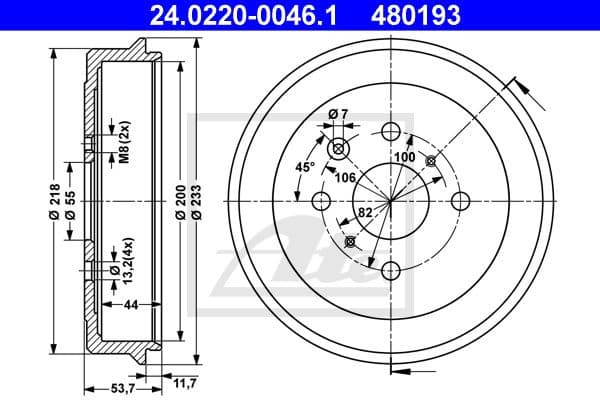

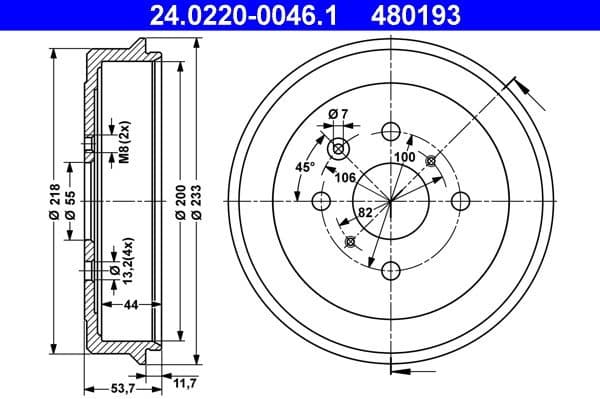

ATEBrand ATE SKU / MPN 24.0220-0046.1 Bolt hole circle (mm) 100 Bore diameter (mm) 13,2 Bore (mm) 13,2 Brake diameter inside (mm) 200 Brake diameter outer (mm) 233 Inner brake drum diameter (mm) 200 Inner brake drum height (mm) 44 Max brake drum reboring dimension (mm) 201 Max skimmed drum measure (mm) 201 Number of holes 4 Outer brake drum diameter (mm) 233 Support plate diameter (mm) 55 Test mark E1 90R-02D0324/1876 Total br drum height (mm) 53,7 Total brake drum height (mm) 53,7

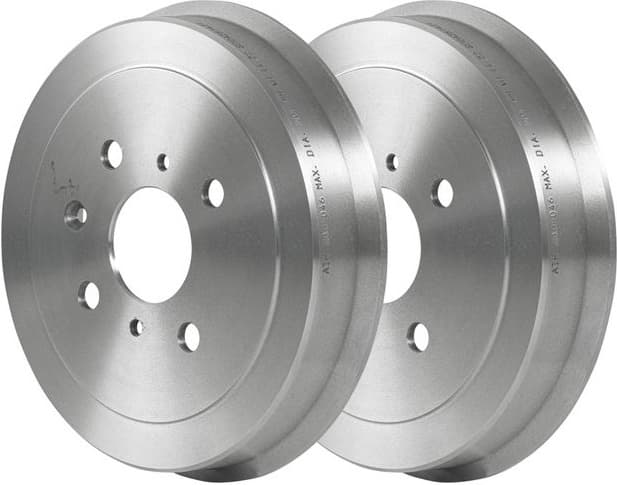

Brake Drum 24.0220-0046.1
SKU: 24.0220-0046.1In Stock
Available — ships within 24 hours
Competitive B2B pricing available
Contact us for volume pricing and custom quotes. EU VAT reclaim available for registered businesses.
Volume discounts available. Typically respond within 24 hours.
Product Details
OEM Quality
Ships Worldwide
Easy Returns
OE / Cross-Reference Numbers
This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.
Compatible Vehicles (8)
This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.
| Make | Model | Years |
|---|---|---|
| CITROEN | C | 2005 - 2014 |
| CITROËN | C | 2018 - present |
| PEUGEOT | 107 | 2005 - present |
| PEUGEOT | 108 1.0 VTi | 2014 - present |
| PEUGEOT | 108 1.0 VTi 72 | 2018 - present |
| PEUGEOT | 108 1.2 | 2014 - present |
| TOYOTA | AYGO (_B1_) | 2005 - present |
| TOYOTA | AYGO (_B4_) | 2014 - present |
