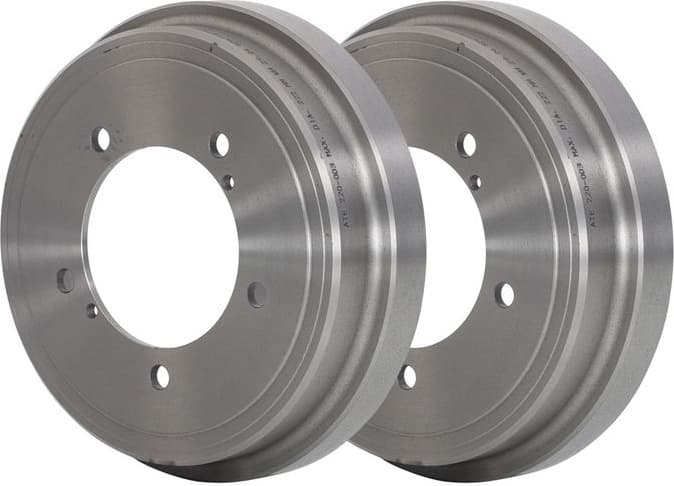

Brake Drum 24.0222-0003.1

Name: Brake Drum 24.0222-0003.1
Brand: ATE
SKU: 24.0222-0003.1

SKU: 24.0222-0003.1

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Product Details

Brand

ATE

SKU / MPN

24.0222-0003.1

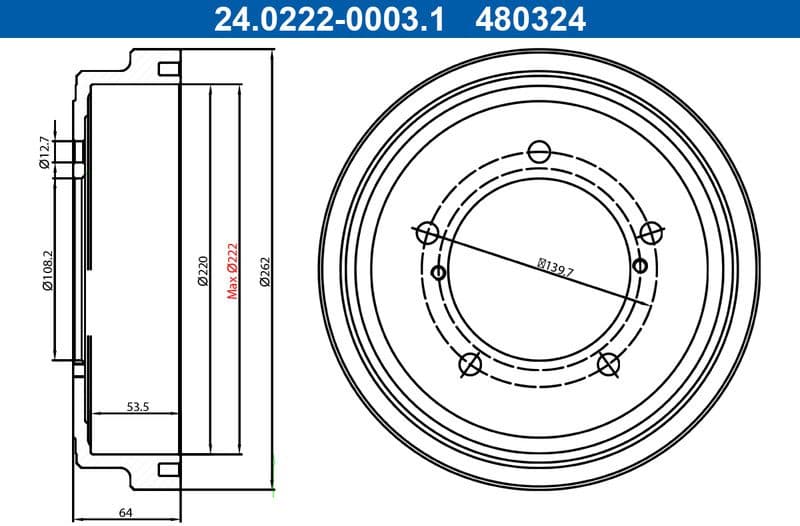

Bolt hole circle (mm)

139.7

Bore diameter (mm)

12.7

Inner brake drum diameter (mm)

220

Inner brake drum height (mm)

53.5

Max brake drum reboring dimension (mm)

222

Number of holes

Outer brake drum diameter (mm)

262

Support plate diameter (mm)

108.2

Total brake drum height (mm)

EU VAT-registered company

Shipped from the EU

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

Make	Model	Years
SUZUKI	GRAND VITARA I 1.6 4x4	1998 - 2003
SUZUKI	GRAND VITARA I 1.6 4x4	2003 - 2005
SUZUKI	GRAND VITARA I 2.0 4x4	1998 - 2000
SUZUKI	GRAND VITARA I 2.0 4x4	1998 - 2003
SUZUKI	GRAND VITARA I 2.0 4x4	1998 - 2005
SUZUKI	GRAND VITARA I 2.5 V6 24V 4x4	1998 - 2003
SUZUKI	GRAND VITARA I 2.5 V6 24V 4x4	2001 - 2003
SUZUKI	GRAND VITARA I 2.7 4x4	2001 - 2003
SUZUKI	GRAND VITARA I 2.7 4x4	2003 - 2003
SUZUKI	GRAND VITARA I Open SUV 1.6 4x4	1998 - 2003
SUZUKI	GRAND VITARA I Open SUV 2.0 4x4	1998 - 2003
SUZUKI	GRAND VITARA II 1.6	2005 - present
SUZUKI	GRAND VITARA II 1.6 All-wheel Drive	2005 - present
SUZUKI	GRAND VITARA II 1.6 All-wheel Drive	2005 - present
SUZUKI	GRAND VITARA II 1.9 DDiS	2006 - 2008
SUZUKI	GRAND VITARA II 1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD...	2005 - present
SUZUKI	GRAND VITARA II 2.0 All-wheel Drive	2005 - 2015
SUZUKI	GRAND VITARA II 2.7 All-wheel Drive	2005 - 2008
SUZUKI	GRAND VITARA II 2.7 All-wheel Drive	2007 - 2008
