Brake Disc ADBP430019
Click to zoom
BLUE PRINT

Brake Disc ADBP430019

SKU: ADBP430019

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
BLUE PRINT
SKU / MPN
ADBP430019

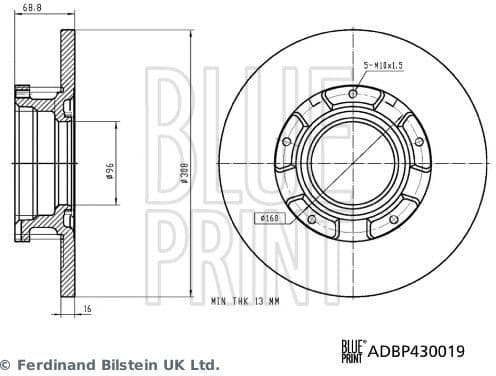

Bolt hole circle (mm)
160
Brake disc thickness (mm)
16
Brake disc type
solid
Centering diameter (mm)
96
Fitting position
Rear Axle
Minimum thickness (mm)
13
Outer diameter (mm)
308
Rim hole number
5
Additional info

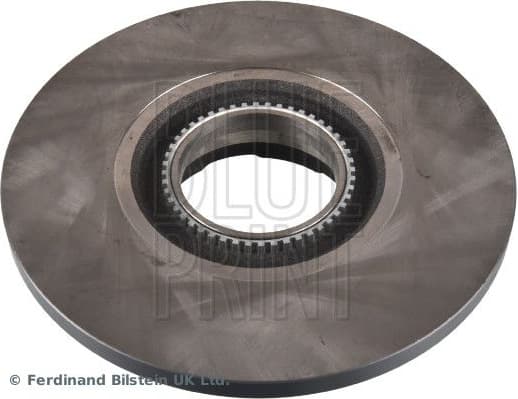

with ABS sensor ring
Surface
Coated
Thickness (mm)
69
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

176428217839102012584204006424091022633658BK212A097AABK212A097ABBK212A097EABK212A097EBBK212A097ECBK212A097GB

Compatible Vehicles (72)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDTOURNEO CUSTOM V362 Bus 1.0 EcoBoost PHEV2020 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue2019 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue2022 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTOURNEO CUSTOM V362 Bus 2.0 EcoBlue mHEV2022 - present
FORDTOURNEO CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTOURNEO CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTOURNEO CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Bus 1.0 EcoBoost PHEV2020 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue2019 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue2022 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Bus 2.0 EcoBlue mHEV2022 - present
FORDTRANSIT CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Bus 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Commercial 1.0 EcoBoost PHEV2020 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue2015 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue2019 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Commercial 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT CUSTOM V362 Commercial 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Commercial 2.2 TDCi2012 - present
FORDTRANSIT CUSTOM V362 Commercial 2.2 TDCi2012 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue2016 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue2016 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue2016 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue2021 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue2023 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue mHEV2019 - present
FORDTRANSIT V363 Bus 2.0 EcoBlue mHEV2021 - present
FORDTRANSIT V363 Bus 2.2 TDCi2014 - present
FORDTRANSIT V363 Bus 2.2 TDCi2014 - present
FORDTRANSIT V363 Bus 2.2 TDCi2014 - present
FORDTRANSIT V363 Commercial 2.0 EcoBlue2016 - present
FORDTRANSIT V363 Commercial 2.0 EcoBlue2016 - present
Show all 72 vehicles
