Home Catalog BOSCH0986041230

Click to zoom

BOSCH

Alternator 0986041230

Name: Alternator 0986041230
Brand: BOSCH
SKU: 0986041230

SKU: 0986041230

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a Quote Ask a Question

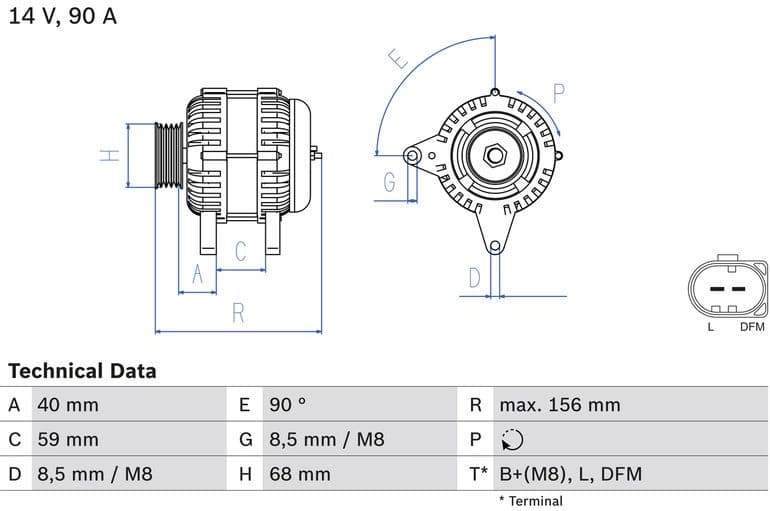

Product Details

Brand

BOSCH

SKU / MPN

0986041230

Alternator charging current (a)

Alternator type

excl. vacuum pump

Belt pulley (mm)

Clamp

B1+(M8),DFM,L

Distance from belt pulley to alternator (mm)

39.6

Fastening type

Double Pivot Lever

Length (mm)

156

Number of grooves

Plug type ID

PL61

Pulleys

with multi-belt pulley

Recommended additional repairs

V-Belt/V-ribbed Belt

Rotation direction

Clockwise rotation

Voltage (v)

Alternator charge current (A)

Pulley diameter (mm)

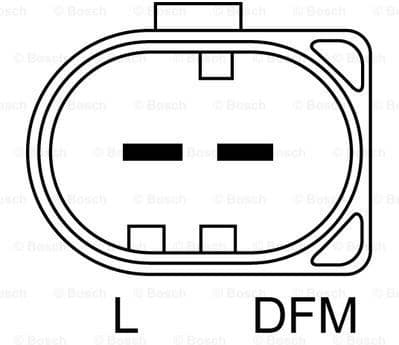

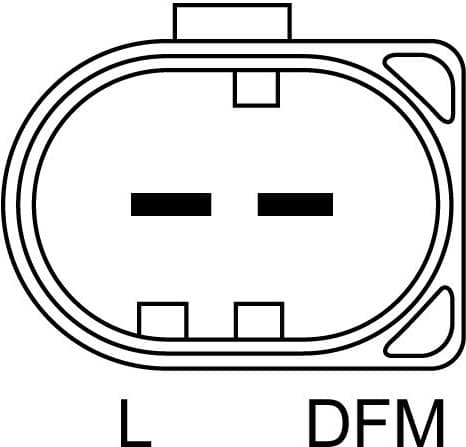

Terminal

B1+(M8),DFM,L

Direction of rotation

Clockwise

Recommended repair extension

V-belt / multi-v belt

EU VAT-registered company

Shipped from the EU

Compatible Vehicles (41)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

Make	Model	Years
VW	LT 28-35 II Bus 2.5 SDI	1996 - 2006
VW	LT 28-35 II Bus 2.5 TDI	1996 - 1999
VW	LT 28-35 II Bus 2.5 TDI	1999 - 2006
VW	LT 28-35 II Bus 2.5 TDI	1999 - 2006
VW	LT 28-35 II Bus 2.5 TDI	2001 - 2006
VW	LT 28-35 II Bus 2.5 TDI	2001 - 2006
VW	LT 28-46 II Commercial 2.5 SDI	1996 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	1996 - 1999
VW	LT 28-46 II Commercial 2.5 TDI	1999 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	1999 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	2001 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	2001 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 SDI	1996 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1996 - 1999
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1999 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1999 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	2001 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	2001 - 2006
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5	1990 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5	1996 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 Syncro	1992 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 Syncro	1996 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI Syncro	1996 - 2003
VW	TRANSPORTER T4 Commercial 2.5	1990 - 2003
VW	TRANSPORTER T4 Commercial 2.5	1996 - 2003
VW	TRANSPORTER T4 Commercial 2.5 Syncro	1992 - 2003
VW	TRANSPORTER T4 Commercial 2.5 Syncro	1996 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	2000 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI Syncro	1995 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5	1990 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5	1996 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 Syncro	1992 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 Syncro	1996 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI Syncro	1998 - 2003
