Starter 0986022131
Click to zoom
BOSCH

Starter 0986022131

SKU: 0986022131

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

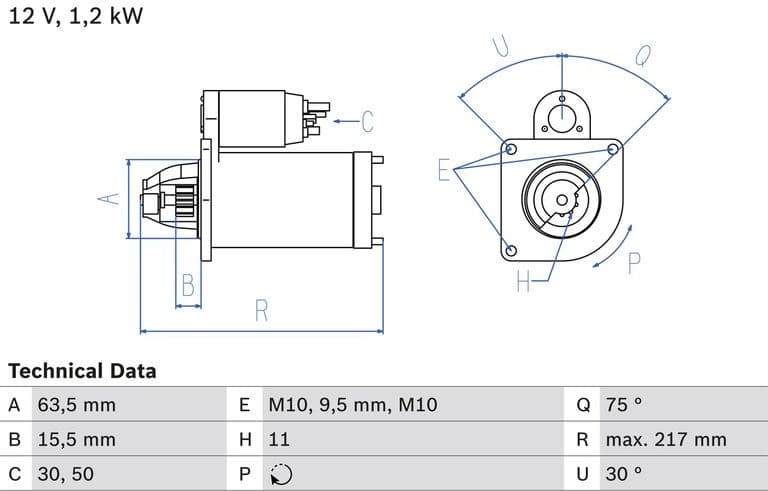

Product Details

Brand
BOSCH
SKU / MPN
0986022131
Bore diameter 2 (mm)
9.5
Clamp
30
Flange diameter (mm)
63.5
Jaw opening angle measurement (degree)
75
Length (mm)
217
Mounting angle (degrees)
30
Mounting bore angle measurement (degree)
30
Number of mounting bores
3
Number of teeth
11
Number of threaded holes
2
Pinion rest position (mm)
14
Position degree
links
Rated power (kW)
1.2
Rotation direction
Clockwise rotation
Starter type
Self-supporting
Thread size
M10
Thread size 2
M10x1.5
Voltage (v)
12
Terminal
30
Direction of rotation
Clockwise
EU VAT-registered company
Shipped from the EU

Compatible Vehicles (74)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDC-MAX 1.6 TDCi2007 - 2010
FORDC-MAX 1.6 TDCi2007 - 2010
FORDC-MAX 1.6 TDCi2007 - 2010
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi ECOnetic2015 - present
FORDC-MAX II 1.6 TDCi2010 - present
FORDC-MAX II 1.6 TDCi2010 - present
FORDFOCUS C-MAX 1.6 TDCi2003 - 2007
FORDFOCUS C-MAX 1.6 TDCi2005 - 2007
FORDFOCUS II 1.6 TDCi2004 - present
FORDFOCUS II 1.6 TDCi2004 - present
FORDFOCUS II 1.6 TDCi2005 - present
FORDFOCUS II Estate 1.6 TDCi2007 - present
FORDFOCUS II Turnier 1.6 TDCi2004 - present
FORDFOCUS II Turnier 1.6 TDCi2004 - present
FORDFOCUS II Turnier 1.6 TDCi2004 - present
FORDFOCUS II Sedan 1.6 TDCi2005 - present
FORDFOCUS II Sedan 1.6 TDCi2005 - present
FORDFOCUS II Sedan 1.6 TDCi2005 - present
FORDFOCUS III 1.5 TDCi2014 - present
FORDFOCUS III 1.5 TDCi2014 - present
FORDFOCUS III 1.6 TDCi2010 - present
FORDFOCUS III 1.6 TDCi2010 - present
FORDFOCUS III 1.6 TDCi ECOnetic2012 - present
FORDFOCUS III Turnier 1.5 TDCi2014 - present
FORDFOCUS III Turnier 1.5 TDCi2014 - present
FORDFOCUS III Turnier 1.6 TDCi2010 - present
FORDFOCUS III Turnier 1.6 TDCi2010 - present
FORDFOCUS III Turnier 1.6 TDCi ECOnetic2012 - present
FORDFOCUS III Sedan 1.5 TDCi2014 - present
FORDFOCUS III Sedan 1.5 TDCi2014 - present
FORDFOCUS III Sedan 1.6 TDCi2010 - present
FORDFOCUS III Sedan 1.6 TDCi2010 - present
FORDGALAXY II 1.6 TDCi2011 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX 1.6 TDCi2010 - present
FORDGRAND C-MAX 1.6 TDCi2010 - present
FORDMONDEO IV 1.6 TDCi2011 - 2015
FORDMONDEO IV Turnier 1.6 TDCi2011 - 2015
FORDMONDEO IV Sedan 1.6 TDCi2010 - 2015
FORDS-MAX 1.6 TDCi2011 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.5 TDCi2015 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.5 TDCi2015 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.5 TDCi2015 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.6 TDCi2013 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.6 TDCi2013 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.6 TDCi2013 - present
FORDTRANSIT CONNECT V408 Van / MPV 1.5 TDCi2015 - present
Show all 74 vehicles
