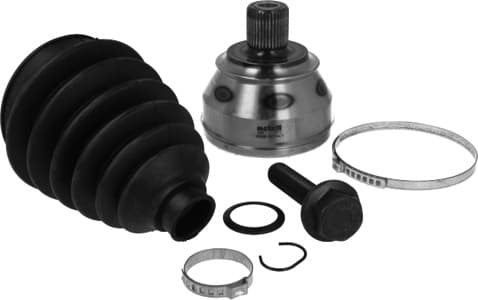

CV joint outer 15-1230
Click to zoom
METELLI

CV joint outer 15-1230

SKU: 15-1230

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
METELLI
SKU / MPN
15-1230
Bellows material
Rubber
External toothing wheel side
38
Internal teeth wheel side
27
Internal toothing wheel side
27
Machined
without groove in internal component
Outer diameter (mm)
98
Outer gearing wheel side
38
Seal diameter (mm)
60
Seal ring diameter (mm)
60
Sealing ring diameter (mm)
60
Thread size
M16x1.5

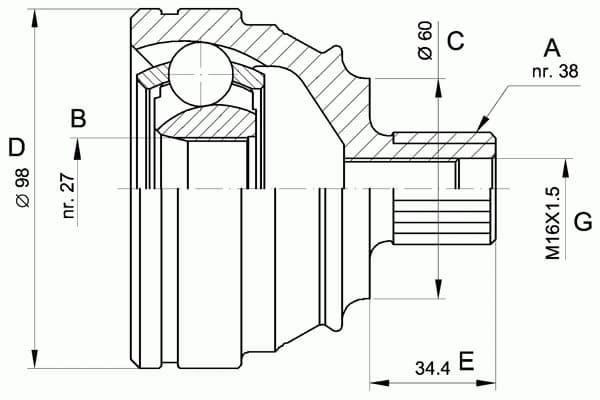

Dimension 1
38
Dimension 2
27
Dimension 3
60
Dimension 4
98
Bellow material
Rubber
EU VAT-registered company
Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

100498005415-1230MET1684118632212272194522900302363302446303450309332323369K3369k607-23075416S8610055147105701407321D701498099B8540291738032747472293CVJ5228.10DRC36032KE01598003E302363E302446E303450ECV030GVW0750K*GVW124KVW124OJ-1726P369KQVJ1201QVJ780SPI22900TDL9492RVKJA3010WW1104hc370

Compatible Vehicles (45)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
VWTRANSPORTER IV Bus 1.9 D1990 - 1995
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 1.9 D1990 - 1995
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 1.9 TD1992 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.01990 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.4 D1990 - 1998
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.4 D1997 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.4 D Syncro1992 - 1998
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.51990 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.51996 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 Syncro1992 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 Syncro1996 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI1995 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI1998 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI1998 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI Syncro1996 - 2003
VWTRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.8 VR 61995 - 2000
VWTRANSPORTER T4 Commercial 1.9 D1990 - 1995
VWTRANSPORTER T4 Commercial 1.9 D1990 - 1995
VWTRANSPORTER T4 Commercial 1.9 TD1992 - 2003
VWTRANSPORTER T4 Commercial 2.01990 - 2003
VWTRANSPORTER T4 Commercial 2.4 D1990 - 1998
VWTRANSPORTER T4 Commercial 2.4 D1997 - 2003
VWTRANSPORTER T4 Commercial 2.4 D Syncro1992 - 1998
VWTRANSPORTER T4 Commercial 2.51990 - 2003
VWTRANSPORTER T4 Commercial 2.51996 - 2003
VWTRANSPORTER T4 Commercial 2.5 Syncro1992 - 2003
VWTRANSPORTER T4 Commercial 2.5 Syncro1996 - 2003
VWTRANSPORTER T4 Commercial 2.5 TDI1995 - 2003
VWTRANSPORTER T4 Commercial 2.5 TDI1998 - 2003
VWTRANSPORTER T4 Commercial 2.5 TDI2000 - 2003
VWTRANSPORTER T4 Commercial 2.5 TDI Syncro1995 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 1.9 D1990 - 1995
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 1.9 D1990 - 1995
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 1.9 TD1992 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.01990 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.4 D1990 - 1998
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.4 D1997 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.4 D Syncro1992 - 1998
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.51990 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.51996 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 Syncro1992 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 Syncro1996 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI1995 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI1998 - 2003
VWTRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI Syncro1998 - 2003
