BOSCH

Alternator 0986045320

Name: Alternator 0986045320
Brand: BOSCH
SKU: 0986045320

SKU: 0986045320

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a Quote Ask a Question

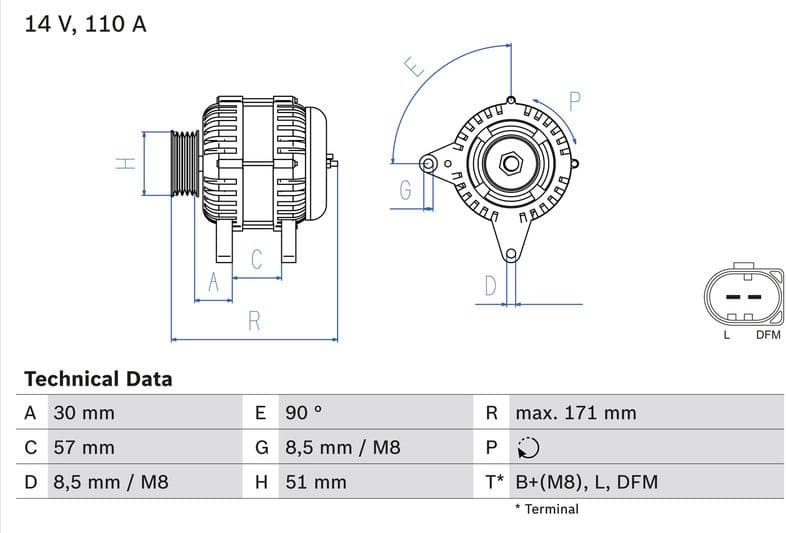

Product Details

Brand

BOSCH

SKU / MPN

0986045320

Alternator charging current (a)

110

Alternator type

excl. vacuum pump

Belt pulley (mm)

50.5

Clamp

B+(M8)

Distance from belt pulley to alternator (mm)

Fastening type

Double Pivot Lever

Length (mm)

171

Number of grooves

Plug type ID

Pulleys

with multi-belt pulley

Recommended additional repairs

V-Belt/V-ribbed Belt

Rotation direction

Clockwise rotation

Voltage (v)

Alternator charge current (A)

110

Pulley diameter (mm)

50.5

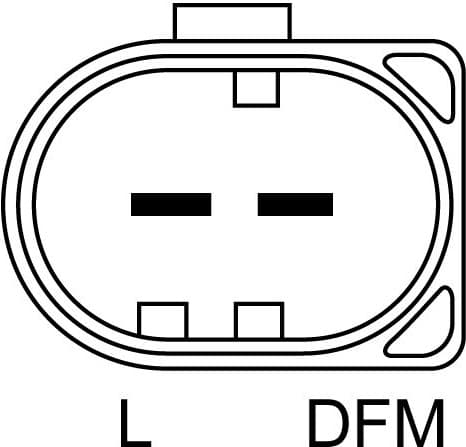

Terminal

B+(M8)

Direction of rotation

Clockwise

Recommended repair extension

V-belt / multi-v belt

EU VAT-registered company

Shipped from the EU

OE / Cross-Reference Numbers

This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.

03C903023 03C903023B 03C903023D 03C903023D1 03C903023DX

Compatible Vehicles (47)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

Make	Model	Years
AUDI	A3 1.6 FSI	2003 - 2007
AUDI	A3 Sportback 1.6 FSI	2004 - 2007
SEAT	ALTEA 1.4 TSI	2007 - present
SEAT	ALTEA XL 1.4 TSI	2007 - present
SEAT	CORDOBA 1.6 16V	2006 - 2009
SEAT	IBIZA III 1.6 16V	2006 - 2009
SEAT	IBIZA IV 1.6	2008 - present
SEAT	IBIZA IV 1.6 LPG	2011 - present
SEAT	IBIZA IV SC 1.6	2008 - present
SEAT	IBIZA IV SC 1.6 LPG	2011 - present
SEAT	TOLEDO IV 1.6	2013 - present
SKODA	FABIA II 1.6	2007 - present
SKODA	FABIA II Combi 1.6	2007 - present
SKODA	OCTAVIA II 1.4 TSI	2008 - 2013
SKODA	OCTAVIA II 1.6 FSI	2004 - 2008
SKODA	OCTAVIA II Combi 1.4 TSI	2008 - 2013
SKODA	OCTAVIA II Combi 1.6 FSI	2004 - 2008
SKODA	RAPID 1.6	2012 - present
SKODA	RAPID Spaceback 1.6	2012 - present
SKODA	ROOMSTER 1.6	2006 - 2015
VW	EOS 1.6 FSI	2006 - 2008
VW	GOLF PLUS V 1.4 FSI	2005 - 2006
VW	GOLF PLUS V 1.4 TSI	2006 - 2008
VW	GOLF PLUS V 1.4 TSI	2006 - 2008
VW	GOLF PLUS V 1.4 TSI	2007 - 2013
VW	GOLF PLUS V 1.4 TSI	2008 - 2013
VW	GOLF PLUS V 1.6 FSI	2005 - 2008
VW	GOLF V 1.4 FSI	2003 - 2006
VW	GOLF V 1.4 TSI	2005 - 2008
VW	GOLF V 1.4 TSI	2006 - 2008
VW	GOLF V 1.4 TSI	2007 - 2008
VW	GOLF V 1.6 FSI	2003 - 2008
VW	GOLF V Variant 1.4 TSI	2007 - 2009
VW	GOLF V Variant 1.4 TSI	2007 - 2009
VW	GOLF V Variant 1.4 TSI	2007 - 2009
VW	GOLF VI Variant 1.4 TSI	2009 - 2013
VW	GOLF VI Variant 1.4 TSI	2009 - 2013
VW	JETTA III 1.4 TSI	2007 - 2010
VW	JETTA III 1.6 FSI	2005 - 2010
VW	PASSAT B6 1.6 FSI	2005 - 2008
VW	PASSAT B6 Variant 1.6 FSI	2005 - 2008
VW	POLO IV 1.4 FSI	2002 - 2006
VW	POLO IV 1.6 16V	2006 - 2009
VW	POLO V 1.4	2009 - present
VW	POLO V 1.6 BiFuel	2011 - present
VW	TOURAN 1.4 TSI	2006 - 2010
VW	TOURAN 1.6 FSI	2003 - 2007
