Click to zoom

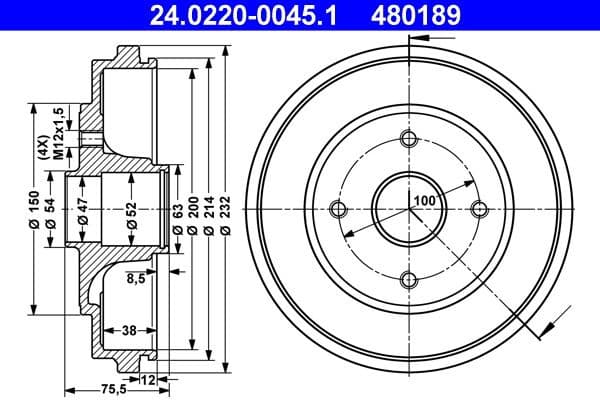

ATEBrand ATE SKU / MPN 24022000451 Bolt hole circle (mm) 100 Inner brake drum diameter (mm) 200 Inner brake drum height (mm) 38 Inner diameter 2 (mm) 47 Max brake drum reboring dimension (mm) 202 Number of holes 4 Outer brake drum diameter (mm) 232 Additional info without wheel bearing Support plate diameter (mm) 52 Thread size M12x1.5 Total brake drum height (mm) 75.5

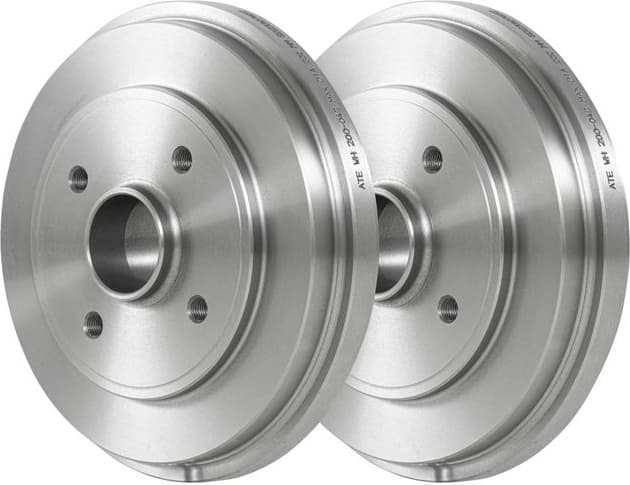

Brake Drum 24022000451
SKU: 24022000451
Ask us for a price
Write to us with the part number and your country. We answer with the price and the delivery cost.
Product Details
EU VAT-registered company
Shipped from the EU
OE / Cross-Reference Numbers
This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.
Compatible Vehicles (9)
This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.
| Make | Model | Years |
|---|---|---|
| OPEL | AGILA A 1.0 | 2003 - 2007 |
| OPEL | AGILA A 1.0 12V | 2000 - 2007 |
| OPEL | AGILA A 1.2 16V | 2000 - 2007 |
| OPEL | AGILA A 1.2 16V Twinport | 2004 - 2007 |
| OPEL | AGILA A 1.3 CDTI | 2003 - 2007 |
| SUZUKI | WAGON R 1.2 | 2004 - 2005 |
| SUZUKI | WAGON R+ 1.2 | 2005 - 2008 |
| SUZUKI | WAGON R+ 1.3 | 2003 - present |
| SUZUKI | WAGON R+ 1.3 DDiS | 2003 - present |
