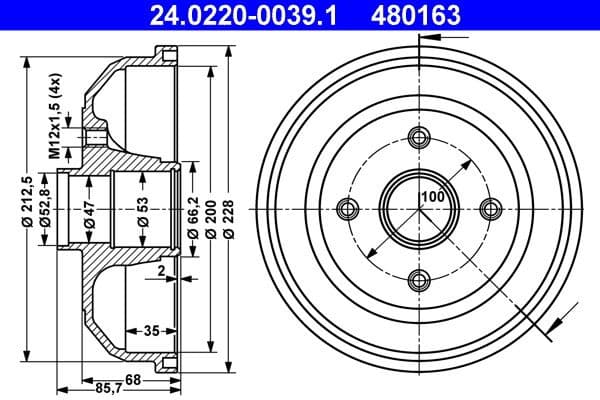

ATEBrand ATE SKU / MPN 24022000391 Bolt hole circle (mm) 100 Inner brake drum diameter (mm) 200 Inner brake drum height (mm) 35 Inner diameter 2 (mm) 47 Max brake drum reboring dimension (mm) 201 Number of holes 4 Outer brake drum diameter (mm) 228 Additional info without wheel bearing Support plate diameter (mm) 53 Thread size M12x1.5 Total brake drum height (mm) 85.7

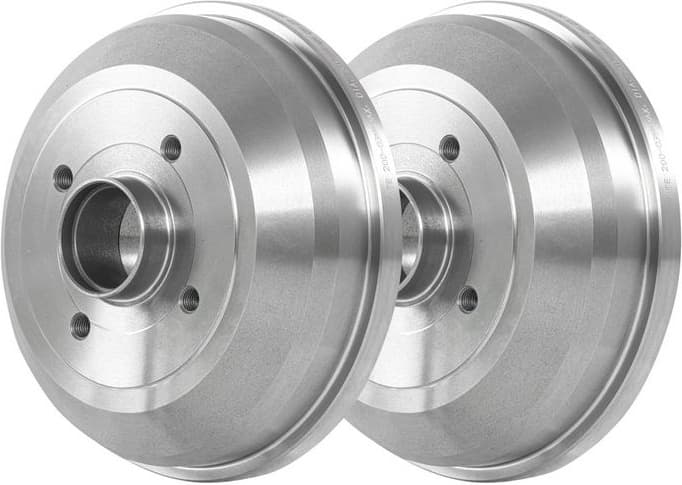

Brake Drum 24022000391
SKU: 24022000391
Ask us for a price
Write to us with the part number and your country. We answer with the price and the delivery cost.
Product Details
EU VAT-registered company
Shipped from the EU
OE / Cross-Reference Numbers
This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.
Compatible Vehicles (15)
This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.
| Make | Model | Years |
|---|---|---|
| OPEL | CORSA C 1.0 | 2000 - 2009 |
| OPEL | CORSA C 1.0 | 2003 - 2009 |
| OPEL | CORSA C 1.2 | 2000 - 2009 |
| OPEL | CORSA C 1.2 Twinport | 2004 - 2009 |
| OPEL | CORSA C 1.3 CDTI | 2003 - 2009 |
| OPEL | CORSA C 1.4 | 2000 - 2009 |
| OPEL | CORSA C 1.4 Twinport | 2003 - 2009 |
| OPEL | CORSA C 1.7 DI | 2000 - 2009 |
| OPEL | CORSA C 1.7 DTI | 2000 - 2009 |
| OPEL | CORSA C Hatchback 1.2 | 2005 - present |
| OPEL | CORSA C Hatchback 1.2 16V | 2000 - present |
| OPEL | CORSA C Hatchback 1.3 CDTI 16V | 2005 - present |
| OPEL | CORSA C Hatchback 1.4 | 2003 - present |
| OPEL | CORSA C Hatchback 1.7 DI 16V | 2000 - present |
| OPEL | CORSA C Hatchback 1.7 DTI 16V | 2000 - present |
