MAHLE

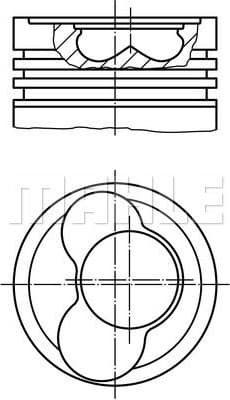

Piston 030 59 00

Name: Piston 030 59 00
Brand: MAHLE
SKU: 030 59 00

SKU: 030 59 00

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a Quote Ask a Question

Product Details

Brand

MAHLE

SKU / MPN

030 59 00

Bolt head diameter (mm)

Bolt length (mm)

Component number

3. DSF 3.0 Cr

Compression height (mm)

45.75

Cylinder bore (mm)

81.01

Fitting position

for cylinder 5

Length (mm)

69.8

Machined

with cut-out for oil jet

Net weight (g)

850

Packaging height (cm)

12.80

Packaging length (cm)

9.5

Packaging width (cm)

9.50

Piston clearance (mm)

0.05

Production number

81 L 51

Recess depth 1 (mm)

17.2

Recess diameter (mm)

39.6

Additional info

without cooling duct

Surface

Coated

Top land height (mm)

Valve pocket depth 1 (mm)

1.35

EU VAT-registered company

Shipped from the EU

Compatible Vehicles (29)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

Make	Model	Years
VW	LT 28-35 II Bus 2.5 SDI	1996 - 2006
VW	LT 28-35 II Bus 2.5 TDI	1996 - 1999
VW	LT 28-35 II Bus 2.5 TDI	1999 - 2006
VW	LT 28-35 II Bus 2.5 TDI	1999 - 2006
VW	LT 28-35 II Bus 2.5 TDI	2001 - 2006
VW	LT 28-35 II Bus 2.5 TDI	2001 - 2006
VW	LT 28-46 II Commercial 2.5 SDI	1996 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	1996 - 1999
VW	LT 28-46 II Commercial 2.5 TDI	1999 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	1999 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	2001 - 2006
VW	LT 28-46 II Commercial 2.5 TDI	2001 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 SDI	1996 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1996 - 1999
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1999 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	1999 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	2001 - 2006
VW	LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2.5 TDI	2001 - 2006
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 2.5 TDI Syncro	1996 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI	2000 - 2003
VW	TRANSPORTER T4 Commercial 2.5 TDI Syncro	1995 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI	1995 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI	1998 - 2003
VW	TRANSPORTER T4 Platform / Chassis (70E, 70L, 70M, 7D 2.5 TDI Syncro	1998 - 2003
