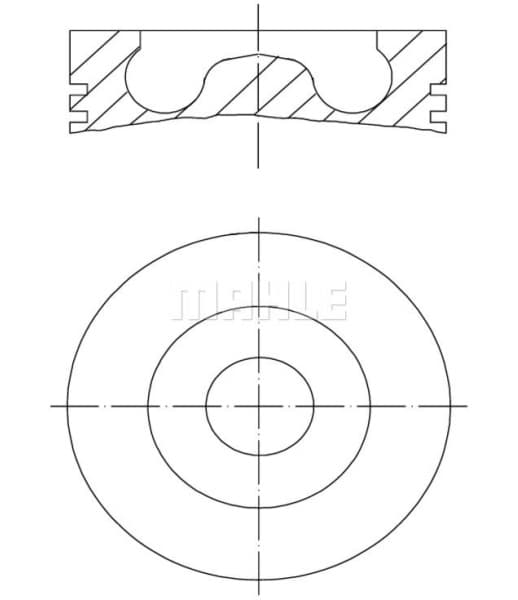

Piston 013 PI 00147 000
Click to zoom
MAHLE

Piston 013 PI 00147 000

SKU: 013 PI 00147 000

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
MAHLE
SKU / MPN
013 PI 00147 000
Bolt head diameter (mm)
26
Bolt length (mm)
58
Component number
3. DSF 2.00 Cr
Compression height (mm)
41.7
Cylinder bore (mm)
73.5
Length (mm)
65.2
Machined
with cut-out for oil jet
Net weight (g)
590
Packaging height (cm)
12.80
Packaging length (cm)
9.5
Packaging width (cm)
9.50
Production number
73 L 61
Recess depth 1 (mm)
13.4
Recess diameter (mm)
45
Additional info
with piston ring carrier
Surface
Coated
Top land height (mm)
8.85
EU VAT-registered company
Shipped from the EU

Compatible Vehicles (49)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDB-MAX 1.5 TDCi2012 - present
FORDB-MAX 1.5 TDCi2015 - present
FORDB-MAX Van 1.5 TDCi2012 - present
FORDB-MAX Van 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi2015 - present
FORDC-MAX II 1.5 TDCi ECOnetic2015 - present
FORDC-MAX II Van 1.5 TDCi2015 - present
FORDC-MAX II Van 1.5 TDCi ECOnetic2015 - present
FORDECOSPORT 1.5 EcoBlue TDCi2015 - present
FORDECOSPORT 1.5 TDCi2013 - present
FORDFIESTA VI 1.5 TDCi2012 - present
FORDFIESTA VI 1.5 TDCi2015 - present
FORDFIESTA VI Van 1.5 TDCi2012 - present
FORDFIESTA VI Van 1.5 TDCi2015 - present
FORDFIESTA VII 1.5 TDCi2017 - present
FORDFIESTA VII 1.5 TDCi2017 - present
FORDFIESTA VII 1.5 TDCi Active2017 - present
FORDFIESTA VII 1.5 TDCi Active2018 - present
FORDFIESTA VII Van 1.5 TDCi2018 - present
FORDFIESTA VII Van 1.5 TDCi2019 - present
FORDFOCUS III 1.5 TDCi2014 - present
FORDFOCUS III 1.5 TDCi2014 - present
FORDFOCUS III 1.5 TDCi ECOnetic2014 - present
FORDFOCUS III Turnier 1.5 TDCi2014 - present
FORDFOCUS III Turnier 1.5 TDCi2014 - present
FORDFOCUS III Turnier 1.5 TDCi ECOnetic2014 - present
FORDFOCUS III Hatchback 1.5 TDCi2014 - present
FORDFOCUS III Hatchback 1.5 TDCi2014 - present
FORDFOCUS III Sedan 1.5 TDCi2014 - present
FORDFOCUS III Sedan 1.5 TDCi2014 - present
FORDFOCUS III Sedan 1.5 TDCi ECOnetic2014 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX 1.5 TDCi2015 - present
FORDGRAND C-MAX Van 1.5 TDCi2015 - present
FORDMONDEO V Turnier 1.5 TDCi2015 - present
FORDMONDEO V Hatchback 1.5 TDCi2015 - present
FORDMONDEO V Sedan 1.5 TDCi2015 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.5 TDCi2015 - present
FORDTOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Minibus 1.5 TDCi2016 - present
FORDTOURNEO COURIER B460 Minibus 1.5 TDCi2014 - present
FORDTOURNEO COURIER B460 Minibus 1.5 TDCi2015 - present
FORDTRANSIT CONNECT V408 Van / MPV 1.5 TDCi2015 - present
FORDTRANSIT CONNECT V408 Van / MPV 1.5 TDCi2016 - present
FORDTRANSIT CONNECT Minibus 1.5 TDCi2015 - present
FORDTRANSIT COURIER B460 Van / MPV 1.5 TDCi2014 - present
FORDTRANSIT COURIER B460 Van / MPV 1.5 TDCi2015 - present
FORDTRANSIT COURIER B460 Minibus 1.5 TDCi2014 - present
FORDTRANSIT COURIER B460 Minibus 1.5 TDCi2015 - present
