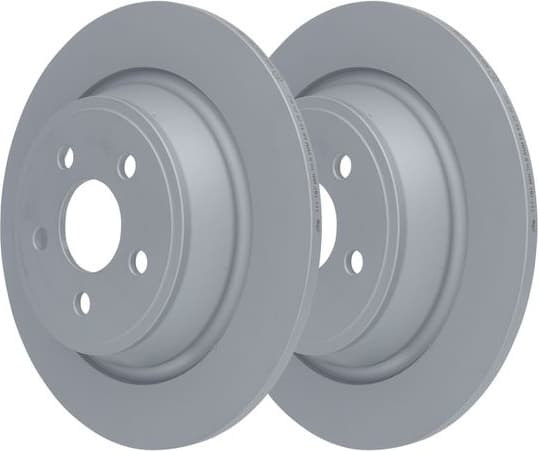

Brake Disc 24011101871
Click to zoom
ATE

Brake Disc 24011101871

SKU: 24011101871

Ask us for a price

Write to us with the part number and your country. We answer with the price and the delivery cost.

Request a QuoteAsk a Question

Product Details

Brand
ATE
SKU / MPN
24011101871

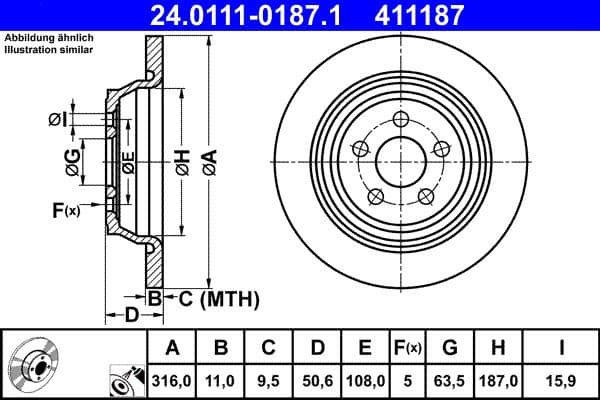

Bolt hole circle (mm)
108
Bore diameter (mm)
15.9
Brake disc thickness (mm)
11
Brake disc type
solid
Centering diameter (mm)
63.5
Height (mm)
50.6
Inner diameter (mm)
187
Machining
Alloyed/High-carbon
Minimum thickness (mm)
9.5
Number of holes
5
Outer diameter (mm)
316
Surface
Coated
Approval
E1 90R-02C0165/1158
EU VAT-registered company
Shipped from the EU

Compatible Vehicles (39)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

MakeModelYears
FORDGALAXY III 1.5 EcoBoost2015 - 2018
FORDGALAXY III 1.5 EcoBoost2018 - present
FORDGALAXY III 2.0 EcoBlue2018 - present
FORDGALAXY III 2.0 EcoBlue2018 - present
FORDGALAXY III 2.0 EcoBlue2018 - present
FORDGALAXY III 2.0 EcoBlue 4x42018 - present
FORDGALAXY III 2.0 EcoBlue 4x42018 - present
FORDGALAXY III 2.0 EcoBlue Bi-Turbo2018 - present
FORDGALAXY III 2.0 EcoBoost2015 - present
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi2015 - 2018
FORDGALAXY III 2.0 TDCi 4x42015 - 2018
FORDGALAXY III 2.0 TDCi 4x42015 - 2018
FORDGALAXY III 2.0 TDCi Bi-Turbo2015 - 2018
FORDGALAXY III 2.5 FHEV2021 - present
FORDGALAXY MK III VAN 2.0 EcoBlue2019 - present
FORDGALAXY MK III VAN 2.0 EcoBlue AWD2019 - present
FORDS-MAX 1.5 EcoBoost2015 - 2018
FORDS-MAX 1.5 EcoBoost2018 - present
FORDS-MAX 2.0 EcoBlue2018 - present
FORDS-MAX 2.0 EcoBlue2018 - present
FORDS-MAX 2.0 EcoBlue2018 - present
FORDS-MAX 2.0 EcoBlue 4x42018 - present
FORDS-MAX 2.0 EcoBlue 4x42018 - present
FORDS-MAX 2.0 EcoBlue BI-Turbo2018 - present
FORDS-MAX 2.0 EcoBoost2015 - present
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi2015 - 2018
FORDS-MAX 2.0 TDCi 4x42015 - 2018
FORDS-MAX 2.0 TDCi 4x42015 - 2018
FORDS-MAX 2.0 TDCi BI-Turbo2015 - 2018
FORDS-MAX 2.5 FHEV2021 - present
FORDUSA EDGE 2.0 EcoBlue2018 - present
FORDUSA EDGE 2.0 EcoBlue AWD2018 - present
FORDUSA EDGE 2.0 EcoBlue AWD2018 - present
FORDUSA EDGE 2.0 TDCi AWD2015 - 2018
FORDUSA EDGE 2.0 TDCi Bi-Turbo AWD2015 - 2018
