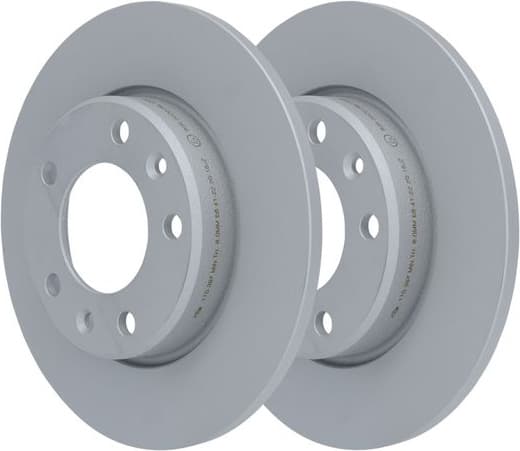

Brake Disc 24.0110-0397.1

Name: Brake Disc 24.0110-0397.1
Brand: ATE
SKU: 24.0110-0397.1
Price: 29.15 EUR
Availability: InStock

SKU: 24.0110-0397.1

In Stock

Available — ships within 24 hours

Competitive B2B pricing available

Request a Quote Ask a Question

Volume discounts available. Typically respond within 24 hours.

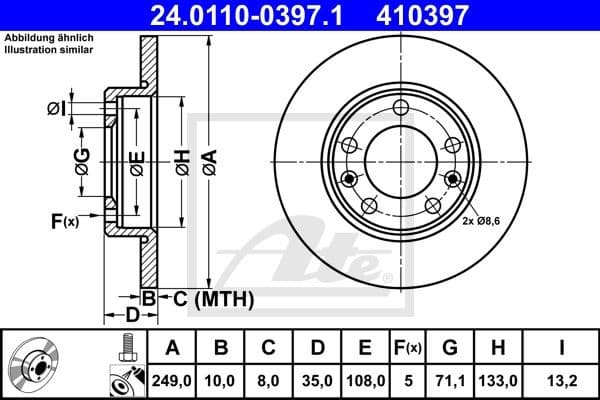

Product Details

Brand

ATE

SKU / MPN

24.0110-0397.1

Bolt hole circle (mm)

108

Bore diameter (mm)

13,2

Brake disc thickness (mm)

Brake disc type

solid

Centering diameter (mm)

71,1

Height (mm)

Inner diameter (mm)

133

Minimum thickness (mm)

Number of holes

Outer diameter (mm)

249

Supplementary article supplementary info 2

with bolts/screws

Surface

Coated

Test mark

E1 90R-02C0165/1006

Oznaczenie kontrolne

E1 90R-02C0165/1006

Wysokość (mm)

35,0

Średnica otworu (mm)

13,2

Typ tarczy hamulcowej

pełny

Grubość tarczy hamulcowej (mm)

10,0

Minimalna grubość (mm)

8,0

Średnica wewnętrzna (mm)

133,0

Średnica zewnętrzna (mm)

249,0

Liczba otworów

Średnica otworu centrującego (mm)

71,1

Ø rozmieszczenia otworów (mm)

108,0

Powierzchnia

pokryty

Artykuł uzupełniający / informacja uzupełniająca 2

ze śrubami

OEM Quality

Ships Worldwide

Easy Returns

Compatible Vehicles (42)

This part fits the following vehicles. Always verify with your vehicle's VIN or OE number before ordering.

Make	Model	Years
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 130
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.2 VTi 72
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.5 BlueHDI 100
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.5 BlueHDi 130
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 BlueHDi 120
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GT 205
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi (L35GNH)
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi PureTech 263 (L3EGXP)
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi / BlueHDi 115
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi 100
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 PureTech 225
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 125
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 150
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 163
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 2.0 BlueHDi 150
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 2.0 GT BlueHDi 180
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 2.0 GT BlueHDi 180
PEUGEOT	308 II (LB_, LP_, LW_, LH_, L3_) 2.0 GT BlueHDi 180
PEUGEOT	308 SW II (LC_) 1.6 BlueHDi
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 130
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.5 BlueHDi 100
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.5 BlueHDi 130
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 100
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 120
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 GT 205
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT)
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi 92
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 PureTech 225 (L45GGR)
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 125
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 150 (L45GXA)
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 155
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 VTi (LWNFPA)
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 BlueHDi 150
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 GT BlueHDi 180
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 GT BlueHDi 180
PEUGEOT	308 SW II (LC_, LJ_, LR_, LX_, L4_) 2.0 GT HDi 180 / BlueHDi 180
PEUGEOT	308 Hatchback (LB_) 1.6 BlueHDi 120 (LBBHZM)
